Product Description

Note:(1)Only part of the common code types are enabled by default,please download the detailed electronic manual(From the URL in paper manual)to enable the code types you need.
(2)At the end of the manual has a link about an operation video,please download and watch before use.One of the documents "Apple Devices IOS system -Enable&Disable Soft Keyboard Method" is about how to use the phone or PC Soft Keyboard
(3)The initial battery power is low,pls charge it when first received.
(4)It does not support Car VIN Numbers,vehicle barcode,square POS/stand.
(5)If you lost the instructions or accessories,pls contact us to get it.
(6)It is energy saving.after switch to tablet/phone's Bluetooth function mode,It will wait for a period of time for you to connect.If the time is too long,It will be shut down to save energy,then you can't search.

Specifications:
Illuminant: Red Light + White Light
Scan Mode: CMOS
Connection Type: Dual 2.4G Wireless + Compatible with Bluetooth Function
Wireless Coverage Area: 10M Visual Range
Flash: 2MB
Supporting Interface: Mini USB
Decoding Frequency Speed: 30 Frame/s
Resolution/Depth of Field/Print Contrast: 4Mil/4-30cm/30%
Cylinder Transverse Scan: Diameter 35mm
Decoding Angle: Corner 30°Elevation 75°Deflection 65°

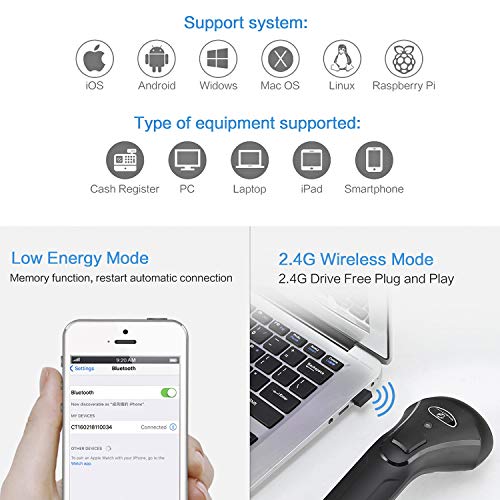

Supporting System: Windows, Mac OS, Android, IOS
Screen Scan Capability: Can Scan LCD Screen

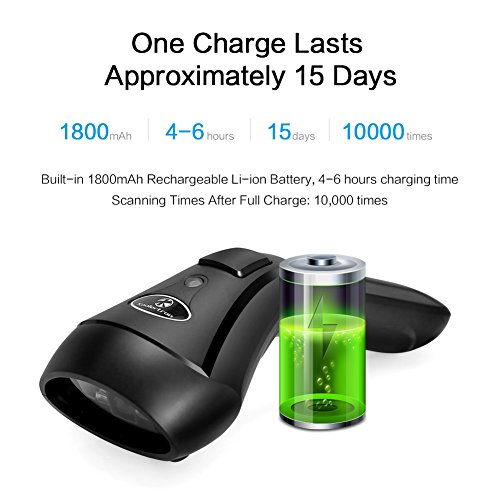

Battery Capacity: 1800mAh
Weight: 128±5g / 4.5±0.17oz(Including Battery)
Power Supply Mode: Built-in Rechargeable Li-ion Battery
Voltage: DC 5V
Quiescent Current: 65mAh
Operating Current: 360mAh
Humidity: 0%-95%(Relative Humidity, Non-condensing)
Ambient Light Immunity: 10.000 Lux

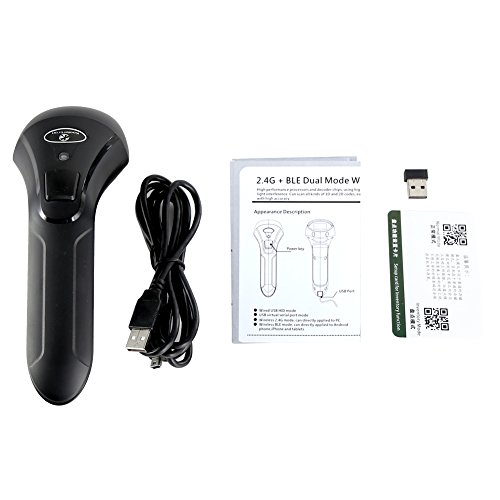

Package Included:
1 x Barcode Scanner
1 x USB Cable
1 x 2.4G Wireless Dongle
1 x Setup Card for Inventory Function
1 x Manual

Feature

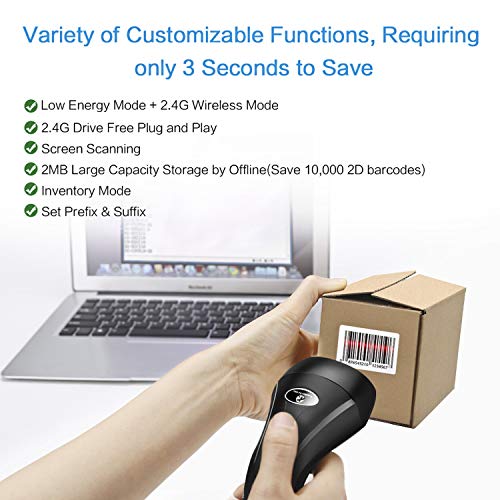

【Dual Wireless Mode Barcode Scanner】You can plug the 2.4G USB dongle to your computer to use the 2.4G wireless function, no need to install any software. When using the wireless mode at tablet/phone, you can use the tablet/phone's Bluetooth function to search for the barcode scanner and connect it
【Support 1D Code, 2D Code Scanning】Quick Barcode Scanning Speed. 2D barcode: PDF417, Micro PDF417, Data Matrix(Squarish), Maxicode, QR Code, Micro QR, Aztec, etc. 1D barcode: UPC, EAN, Code128, Code39, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc. (Note: It does not work with square POS/square stand)
【High Compatibility】Windows, MAC OS by 2.4G wireless direct connect, Android, IOS directly connected to mobile phones, tablet, notebook, computer
【Mass offline Storage】Built-in 2MB high-capacity memory, support 600,000 QR Code offline storage.
【Ergonomic Design】Exquisite ergonomic design, weighs 130g, with comfortable grip feel, and longtime operating without fatigue.
Brand : Koolertron
Item model num : GH-BT
MPN(PartNumber) : GH-BT
EAN : 0190313017359
Product Dimensions(LxWxH) : 8x6x19cm ; 159 g
Package Dimensions(LxWxH) : 18x11x8cm ; 159 g
