Product Description

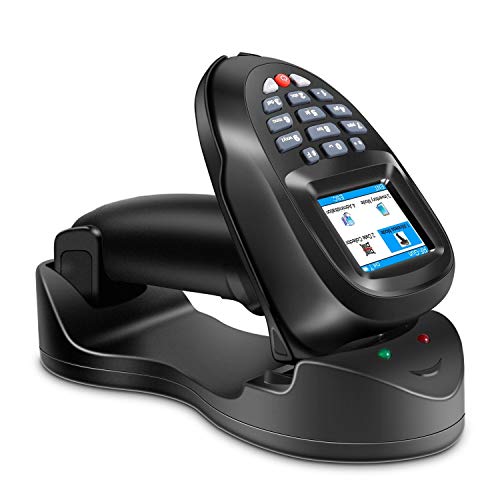

Thank you for using our new PDT Series Wireless Bar Code Collector. It combines the wireless barcode scanner and various commonly used wireless barcode data acquisition functions, users can directly use without any programming. PDT series products with keyboard and screen, can do wireless barcode scanner can not function.

Wired / Wireless Barcode Scanner
The function is the same as that of a traditional wireless scanner, which is to scan the barcode and send it to the computer immediately.

Data Collect Mode
The mode is non-real-time transmission mode, all the barcode acquisition after mass transfer, the user can choose to export wireless or cable. All scanned barcodes are stored in FLASH memory in scan order, and power loss does not result in data loss.

Inventory Mode
After scanning the barcode, the same auto-accumulation quantity can also be manually input the quantity value. Each time the barcode is scanned, the corresponding quantity of the barcode is increased by one, or the number of manual counting input can be directly pressed to be overwritten or accumulated.

Specs:
32-bit high-speed ARM series CPU
FLASH Memory: 4MB, storing more than 30,000 data.
Power Supply: Built-in one rechargeable circulating lithium metal battery, support for charging through the USB port.
Display: 176 x220 TFT color LCD, white backlight.
Size: 165 x 65 (54) x 38 (26) mm, approx. 180 grams
15 keys high-quality silicone keyboard
Continuous Working Time: 10-50 hours, at least 10,000 times can be scanned

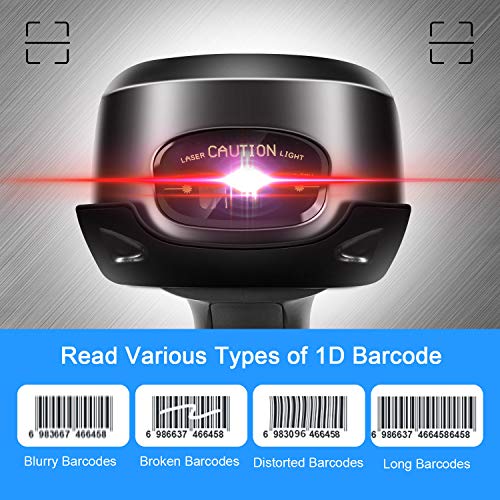

Read Barcode Types: EAN13, EAN8, 39 yards, 93 yards, 128 yards, IT25, Codebar, UPCA, UPCE, etc.

Note:Enter some important settings need to enter the password,the default password is 13579.

Package Included:
1x Data Collector
1x Wireless Receiver
1x USB Cable
1x User Manual

Feature

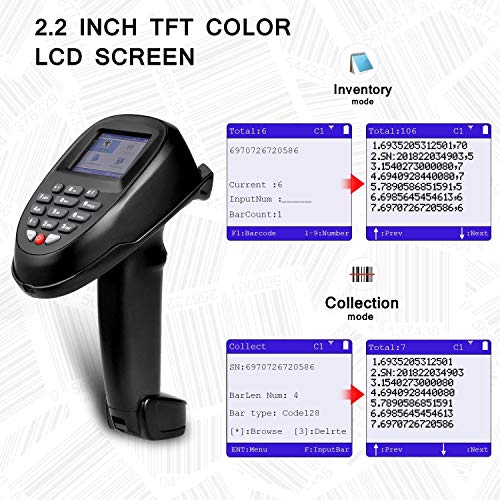

【Stylish Design】- Equipped with 2.2-inch HD color screen, the barcode scanner can display the current wireless channel used, wireless signal strength and battery power. Users can view barcode content, type and length in real time. Mul-function: Wired / Wireless scanner, Data collect, Inventory mode etc.
【Plug and Play】- Simple installation with any USB port, no any drive needed. Read all the standard 1D bar codes like 1D UPS, USPS, FedEx, DHL, BOOK barcode. Ideal use in a wide range of situations and workplaces for businesses, shops and warehouse operations.

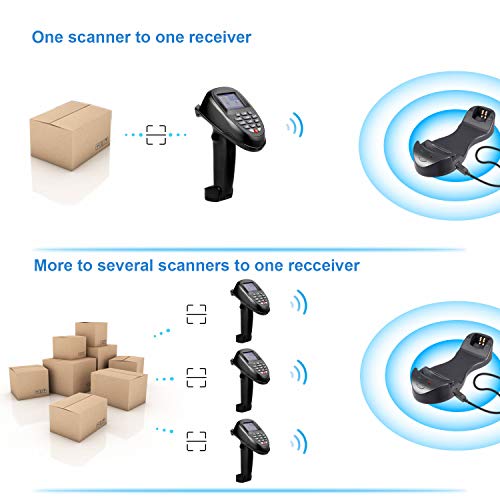

【Long Distance 433MHz Wireless Transmission Technology】- Transmission distance can up to 50meter / 164ft in the warehouse, office etc. 100m / 328ft in the barrier free environment.
【Compatible System】- Compatible with Windows, Mac OS, Linux. Work with Word, Excel, Novell, Quickbook, InFlow etc. Only work on device that has USB port, not for iPad, tablet, smart phone.

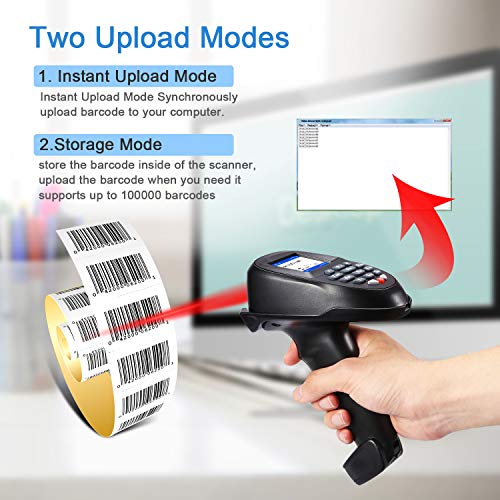

【Two Upload Mode】- Instant upload mode:Scan the bar code, the data will be uploaded to your device in sync; Storage mode: Scan the bar code and store the data inside the built-in storage of scanner, and then upload the data to your device when you need it.
Brand : Trohestar
MPN(PartNumber) : BS7108-CH
EAN : 8002124916894
Product Dimensions(LxWxH) : 23x14x9cm ; 640 g
Package Dimensions(LxWxH) : 27x18x10cm ; 640 g
