How to use
Android mobile phone/tablet scanning QR code and then download APP(Please contact to us, we will send you the QR code); Apple mobile phone/tablet download APP: pos-printer

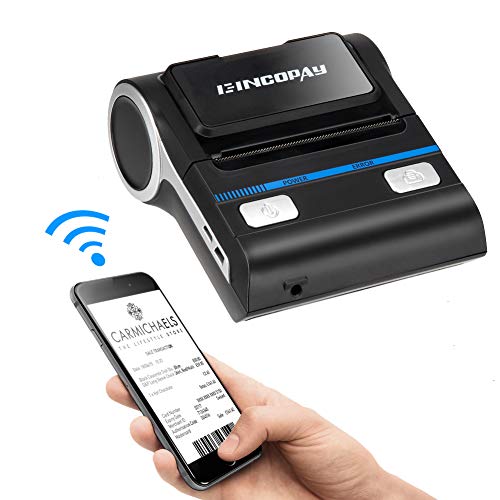

1. Turn on the printer, turn on the tablet/phone's Bluetooth, search for Bluetooth "ICP-BP80" in the app and enter the password "000000" and then connect Bluetooth.
2. Add printer and named the printer you want.
Model choose "other model",
interface: Bluetooth
Bluetooth printer: Click on "search" and find the printer you added;
Paper width: 80mm;
Choose "print receipt";
Choose "automatically print receipt"
3. Begin to print: choose all items the client's buy, confirm the payment and print the receipt Please note: A printer can only connect one Apple and one Android at a time.
Specifications:
print mode: Thermal type;
print density: 576dot / line;
print speed: >80mm/s;
interface: USB+ Bluetooth;
print paper width: 80mm;
roll diameter: 50 mm;
paper thickness: 0.06-0.08mm;
print command: Compatible with ESC/POS;
character size: 24*24 point;
bar code type: Code 39;
input buffer: Bytes 1.5K;
Power adapter: Input: AC220V; Output: DC9V/1A;
Lithium battery: 3600mAh/7.2V;
Charging time: 3 hours;
Working environment temperature: 0 C ~50 C, Humidity: 20%~85%.
