Product Description

Product description

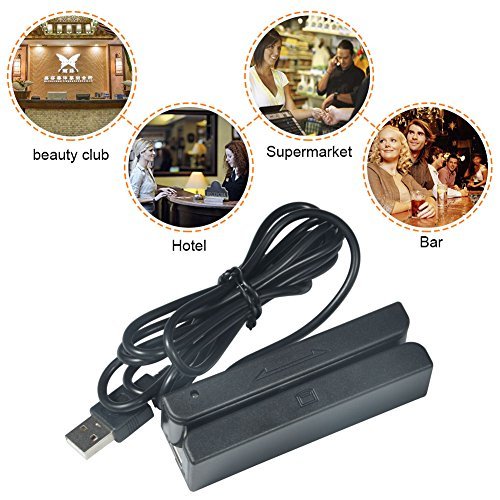

Our MSR580/MSR90 Magnetic Card Reader is a 123 track magnetic stripe card reader, mainly used for reading and transmitting magnetic card information. Users can set the reader's start terminator, carriage return and buzzer sound on and off functions(MSR580--can set buzzer sound, MSR90--no buzzer sound ). it is hand swipe operated magnetic card reading machine with USB interface, adopting high integrated magnetic card decoding chip. They have small electricity consumption and strong interference resistance. Perfect for laptops/notbooks, desktop computers, credit card proessing, point of sale (POS), access control, ID verification, time and attendance terminals, etc

How to use:
1. Connect the Magnetic Strip Card reader to a computer USB port
2. Run a text editor, notepad or other program with an input box
3. Swipe a magnetic card through the reader
4. The card is read and card data shows in the box
5. Please noted this is a usb reader not a wireless reader or data collector, it must works with pc and can't store the card data

Features:
Small footprint to fit in tight places
Reads up to 3 tracks of information
Bi-directional swipe reading--Superior reading of high jitter, scratched, and worn Magstripe cards
HICO/LOCO Cards all compatible
Reliable for over 1,000,000 card swipes
Threaded inserts for mounting
LED indicator(Green light is on when connecting. Green light blinks when cards swiped.)
Configuration software makes configuration changes easy

Specifications:
Size: 90x 27 x 29 mm( L x W x H)
Color: black
Interface:USB emulation Keyboard
Housing: ABS
Operating Temperature: -20 to +60
Relative Humidity: 90% non-condensing
Works with: Windows98/2000/XP/Vista/7/8/10,MAC OS,or many other USB capable operating systems

Package List:
1x Magnetic Card Reader

Feature

【Buzzer Sound Freely Set】--Users can set the reader's start terminator, carriage return and buzzer sound on and off functions(MSR580--can set buzzer sound, MSR90--no buzzer sound )
【LOW POWER Consumption】-- Low power consumption, direct power supply through the USB port of the PC, no external power supply
【Track Set】--The user can set the Magnetic Strip Card Reader track information of the reader's output magnetic stripe card through the "Demo" software of the device configuration, such as 1 track, 2 tracks, 3 tracks, full track or any two of them
【Self-test Function】--Power on self-test function, green LED battery indicator indicates successful reading (device with buzzer will beep after the card reading is successful)
【30 Days Money Back Guarantee】--If any question, please freely to contact our service, we will respond as soon as possible & provide 30 Days Money Back Guarantee for you if there exist questions
Brand : GOTOTOP
MPN(PartNumber) : GOTOTOP
EAN : 0654936108981
Package Dimensions(LxWxH) : 14x7x5cm ; 95 g
