Product Description

Applications: food distribution, restaurant, retail shop, warehouse, logistics, commercial delivery, home business, etc.

Physical Characteristics

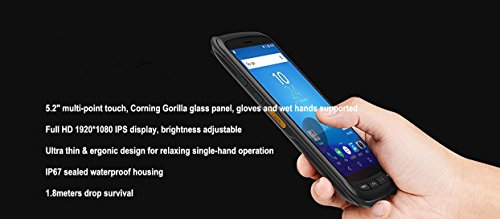

Display: 5.2'' IPS FHD 1920x1080P
Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power: Li-ion, rechargeable, 4000mAh
Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces: USB2.0 Type-C, OTG
Audio: speaker, 2 microphones
Keypad: 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors: Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor

Performance Characteristics
CPU: Cortex-A53 Quad-core 1.3GHz
RAM+ROM: 2GB+16GB
Expansion: Supports up to 32 GB Micro SD card

Wireless connectivity
WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (America): 2G:850/900/1800/1900MHz, 3G: 850/900/1700/1900MHz, 4G: B2, B4, B7, B12, B17
Bluetooth: Bluetooth 4.0, BLE
GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna

NFC
Frequency: 13.56MHz
Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips: M1 card (S50, S70), CPU card, NFC tags, etc.
Range: 2-4)

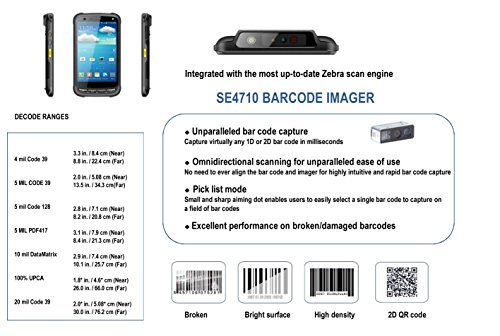

Barcode Scanner: Zebra SE4710 2D Imager Scanner
1D barcode Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D barcode Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Feature

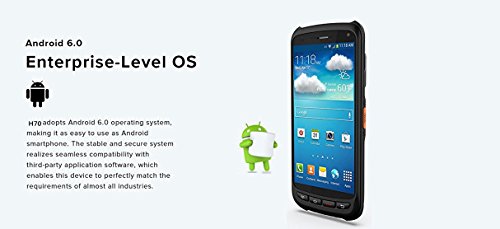

Android 6.0 OS. Powerful quad-core processor. 2GB RAM, 16GB ROM. 5.2-inch big touch panel with 1080P full HD IPS display. Integrated 4000mAh Li-ion battery.
Integrated the most up-to-date Zebra SE4710 2D imager scanner for unparalleled 1D 2D & QR bar code capture in milliseconds, extraordinary working range, wide field of view and Omnidirectional scanning. The PDA's scan wedge feature enables web-based applications or excel input, support Google android-based warehouse management & inventory applications. SDK available for customized development.
802.11 a/b/g/n dual bands Wi-Fi & WCDMA / 4G LTE provides anytime any where connectivity. Support AT&T, T-Mobile cellular network & making calls (B2, B4, B7, B12, B17). Integrated NFC / GPS / camera (13MP).
Compact and rugged design, can sustain up to 1.8 meters drop to concrete. Added with IP67 sealed housing, this handheld device is a perfect tool for enterprise field activities in outdoor and harsh working environment.
12-months warranty. The package includes: 1* handheld device, 1* wall charger (US standard), 1* USB cable, 1 * hand strap, 1 * CD for user manual & SDK files. Optional dock charger: B07C97765K
Brand : Archer Products
Item model num : H70
MPN(PartNumber) : H70
EAN : 0747880599896
Product Dimensions(LxWxH) : 17x8x2cm ; 585 g
Package Dimensions(LxWxH) : 20x12x8cm ; 585 g
