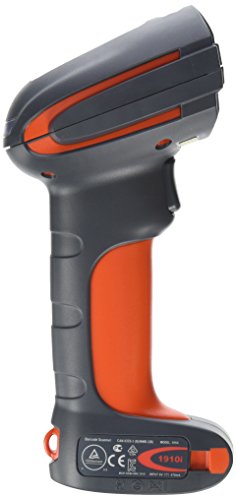

This Honeywell 1910IER-3USB Granit 1910i orange and gray industrial corded barcode scanner has an extended-range area-image scanner for reading and decoding 2D barcodes and has an enhanced scanner feedback for use in extreme and harsh environments. The scanner has IP65-rated housing designed to withstand 50 6.5-ft. (2 m) drops to concrete at -30 degrees C. The highly sensitive scanner deciphers codes that are difficult to read or have been damaged or smudged. The extended range focus has a depth of field up to 29.5 inches (75 cm). The LEDs and audible signal indicate the status of a scan. Remote MasterMind software (not included) can be used by an administrator to manage the device remotely. For a complete set of product specifications, please see the manufacturer's brochure.
Specifications | |
---|---|
Input voltage | 4.0-5.5V |
Host system interfaces | USB, RS-232 TTL, Keyboard Wedge |
Scan pattern | Area imager (838 x 640 pixel array) |
Decode capability | Reads standard 2D barcodes |
Motion tolerance | Up to 240 in/s (610 cm/s) at 6.5 ft. (16.5 cm) and 150 in/s (381 cm/s) at 10.0 in. (25 cm) for 13 mil UPC |
Scan angle | ER focus: 31.6 degrees horizontal; 24.4 degrees vertical |
Pitch; skew | 45 degrees; 65 degrees |
Print contrast | 20% minimum reflectance difference |
Drop specs | Designed to withstand 50 6.5-ft. (2 m) drops to concrete at -30 degrees C; withstand 5,000 40" (1 m) tumbles |
Environmental sealing | IP65 |

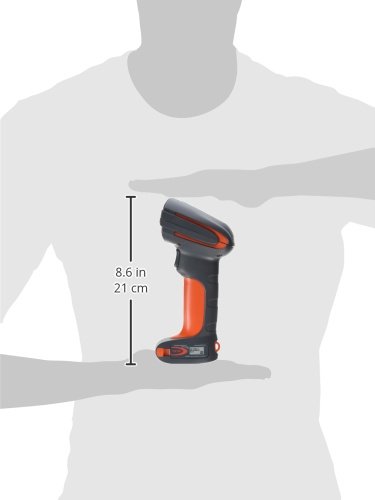

Reader dimensions* | 5.2 x 2.9 x 7.6 inches/133 x 75 x 195 mm (L x W x H) |
Reader weight | 10.6 oz. (300 g) with battery |
Color | Gray and orange |
* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top.
Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities.
Honeywell manufactures products, materials, and technologies used in aerospace, transportation, and automation and control systems. The company, founded in 1885, is headquartered in Morristown, NJ.
