Product Description

The 4KSP12-S is a 1 x 2 HDMI splitter with scaler, reliably distributes one HDMI input signal to two outputs at resolutions up to
4K@60Hz 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications,
including supported data rates up to 18 Gbps, HDR (high dynamic range)/Dobly Vision, 3D and HD lossless audio formats.

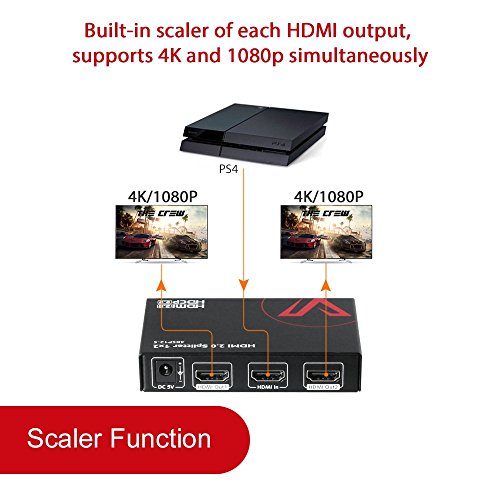

With the built-in scaler, when connected to two different displays, the corresponding HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display.
The splitter provides HDCP management which continuously authenticates HDCP encryption between all devices, ensuring correct source content is output to each display.
It also features automatic input cable equalization, actively conditions input HDMI signals to compensate for signal loss when using long cables or cascading multiple units.

Feature

【HDMI 2.0 with 2 Scaling Outputs】Distributes one HDMI signal to two displays simultaneously with resolution 1080P AND 4K@60Hz (4:4:4) HDR10 18G; Compatible with such as PS4 Pro, Xbox one X, Roku, Apple TV, and more. Perfect for gamers and designers for work and pleasure.
【HDCP 2.2 and Excellent Audio 】: Supports HDMI 2.0 /1.4 and HDCP 2.2/1.4, Dolby Atmos, DTS: X, DTS-HD Master Audio, PCM7.1, Dolby TrueHD.Resolution up to 4K@60Hz (4:4:4); HDR & Dobly Vision; Support manual EDID to choose the resolution you need.【Note！】When using with receiver we recommend Audio extractor to provide 5.1CH audio as the 4KSP12-S only support 2.1ch--Audio Extractor【B07D9BNVM1】

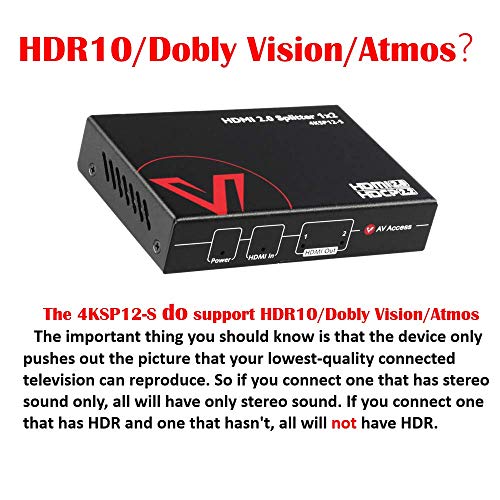

【HDR10/Dobly vision】:When receiving HDR/Dobly vision signal, All the TVs connected need to be HDR supported , otherwise the HDR will not works.
【NOTE】: When transmitting 4K@60Hz (4:4:4) signal, an HDMI 2.0 certificated cable is needed. Recommended HDMI 2.0 certificated cables: ASIN: 【B06XXRNC9X】(6ft); ASIN:【B06XXM3SMP】(10ft); This is 1x2 HDMI splitter, NOT switcher，if you need HDMI 2.0 Switcher recommend 4X1 swticher ASIN:【B0787DL9BM】
【Durability & Warranty 】Built-in Surge/Lightning Protection; Superior ESD Protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge); 1-Year Warranty, and lifetime 1 to 1 Customer Services (AV Access).
Brand : AV Access
Item model num : 4KSP12-S
MPN(PartNumber) : 4KSP12-S
EAN : 0703064515397
Package Dimensions(LxWxH) : 17x13x7cm ; 395 g
