Product Description

VICTONY 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.
Specification:

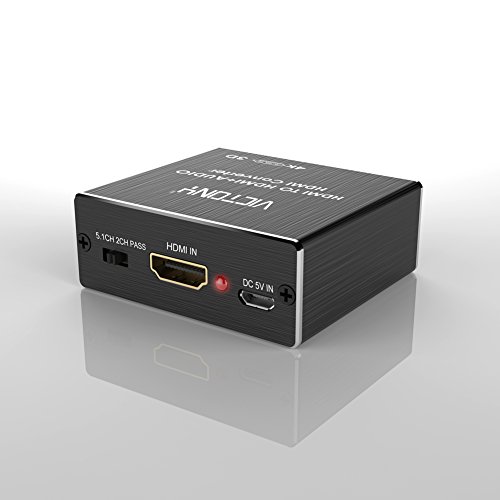

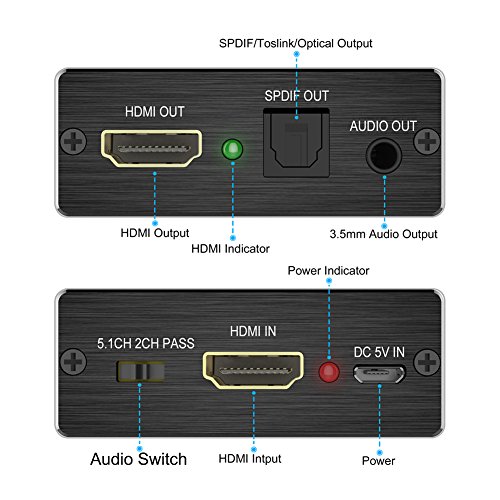

Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

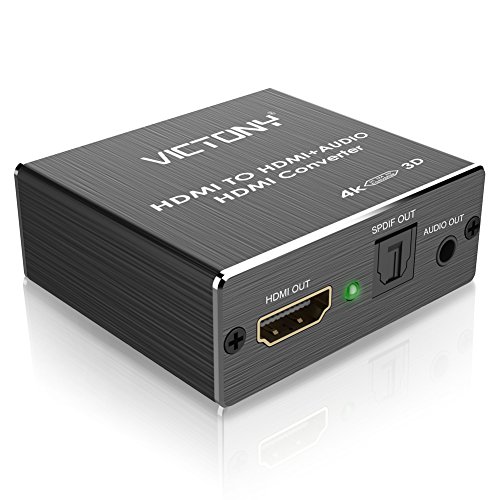

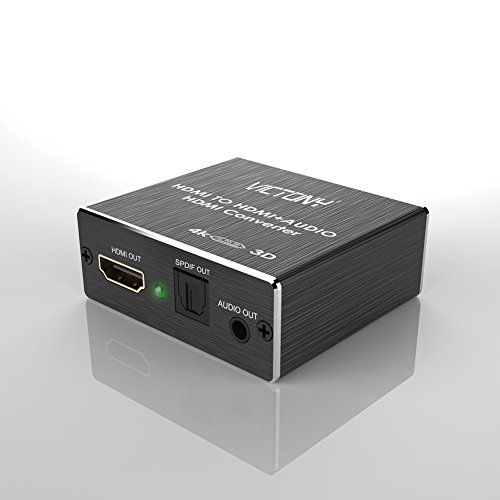

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA

Three switing audio EDID settings: Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio.
5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI/ SPDIF.

Kindly Note:
1.Not Support Dolby Digital Plus audio, it is support DTS Audio and Dolby digital audio.
2.USB POWER - For devices with low power HDMI ports, the power adapter(Not including) can use the phone adapter(5V/1A)
3.NOT SUPPORT copyright protected content.

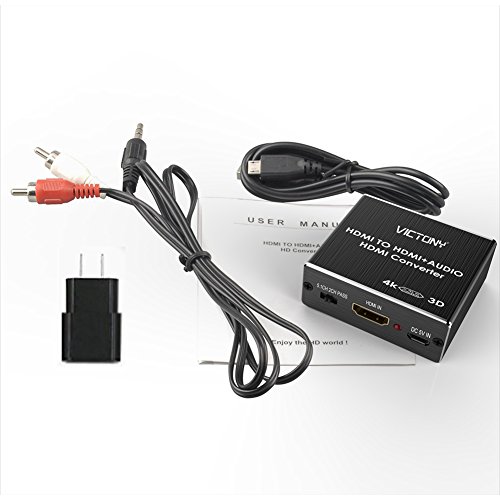

Package Contents:
1 X HDMI Audio Extractor
1 X 3.5mm to RCA Stereo Audio Cable
1 x Micro USB cable
1 X User Manual

Warranty:
1 Year Limited Warranty by VICTONY

Feature

One HDMI Input to one HDMI Output(Pass Mode), SPDIF (Optical) digital audio output(2CH/5.1CH Mode), and 3.5mm Stereo audio output(2CH Mode); It comes 3.5mm to RCA Stereo Audio Cable. SPDIF and L/R audio support output separately to amplifier without connecting TV/Monitor; Input resolution up to 4K x 2K, 1080P/60Hz, 3D/24Hz
Supports 24 bit /deep color 30bit, 36bit per channel (36bit all channel) deep color; Supports Video EDID Pass Through, Audio EDID Settings: Pass, 2CH and 5.1CH

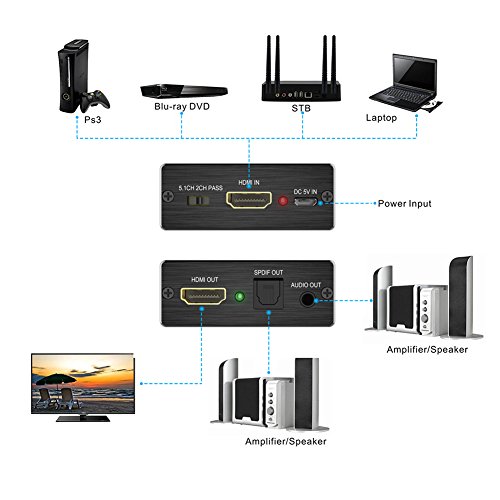

3.5mm audio output supports 2CH PCM stereo audio only. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS AudioSuitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc
Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc
The product is backed by a 1-year limited warranty and emergency replacement assistance. Please read and follow instruction patiently and correctly. Any problem met on you pls contact us at anytime and our service always be there.
Brand : VICTONY
Item model num : V-HDMI Converter
MPN(PartNumber) : V-HDMI Converter
EAN : 0677892872567
Package Dimensions(LxWxH) : 15x12x6cm ; 263 g
