Product Description
Using our 16DB high-gain omnidirectional antenna can greatly increase the network coverage area and signal strength of your wireless devices, accelerating the transmission rate in a more stable way.
If you use wireless network router/USB Adapter/PCI PCIe Cards/IP Camera and there is more than one antenna on these devices, do not hesitate to replace your old antennas with our 16DBI antenna.
Product Specification:
Frequency Range:2400--2500MHz
VSWR:≤1.5DB
Gain:16dBi
Polarization Type:Vertical
Radiation:Omni
Rated Power:50W
Output impedance:50 Ohms

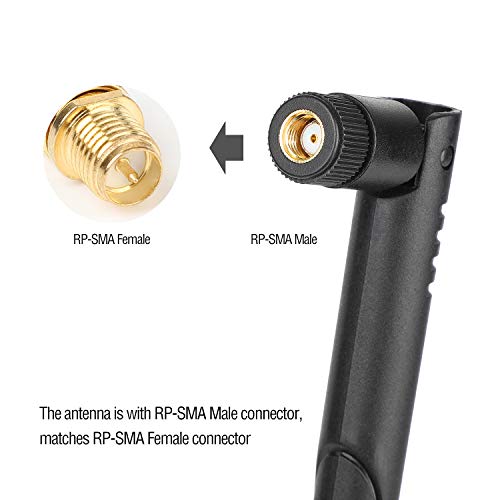

Connector Type:RP-SMA male
Supported wireless speed: 2.4GHz
Length: 17.5"
Weight:49.5g
Package detail:
2 pcs of 2.4G 16DBi wifi antenna
Note:
The actual signal strength boosting effect is related to the output power and matching level of your wireless network devices.
After-sales service:
We provide 7×24 hours after-sales service，please feel free to contact us if you have any problem when using our products.
If there is quality problem with new product, we will refund the full amount.
Feature
The ring-shaped sensing antenna with all-copper material has better gain effect.
The antenna is an omnidirectional, the signal can be 360° covered in the horizontal direction without adjusting the direction of the antenna.
16DB high gain can increase the transmission distance and speed of wireless devices.
The antenna is only a kind of transmitting carrier of the signal, not the transmitting source, and can not increase the transmitting power of the network signal. To perform this antenna's performance, the network equipment rf chip needs to support more than 20dbm transmission frequency.
The standing wave ratio (VSWR) is lower than 1.5DB, and the signal transmission efficiency is over 96%.
Brand : Hyber&Cara
Item model num : DS-2.4G-16DB
MPN(PartNumber) : DS-2.4G-005
EAN : 0755320162500
Product Dimensions(LxWxH) : 46x2x2cm ; 136 g
Package Dimensions(LxWxH) : 46x5x5cm ; 136 g
