Product Description
Rear view camera & 7" Monitor Vehicle Security System Features:

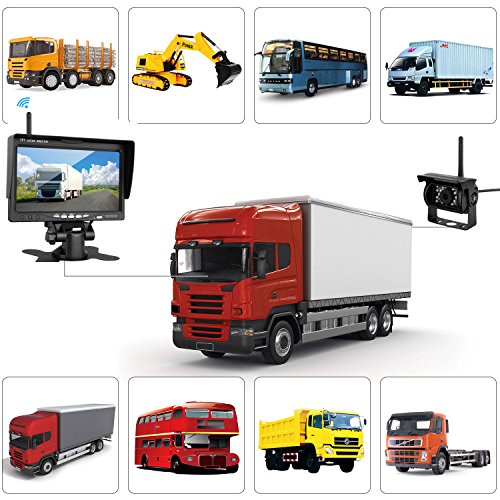

1, The system mainly used on Pickup/van/RV/5th Wheel/Truck/Motorhome/Trailers/Campers etc
2, Can add a additional front/rear view camera to current system.
3, The monitor screen can set default start up/off auto when power come on/off,We provided a charger adapter on/off switch to control.
4, The screen pictures are color HD picture at days
5, The Camera is IP69K waterproof with 18 LED IR Night Vision
6, The system can be set up to work in reversing or constantly in driving by you.
7, The guide lines on screen was quit/add optional,cut off the white wire the guide lines disappear on screen
8, The monitor can be mounted on dash or the monitor mount is removeable to hook anywhere you like,if you need a Suction cup mount for windshield,contact us to get a free one.
9, We provided instructions manual and video for all customer,contact us if you didn't get it.
10, 2 year warranty

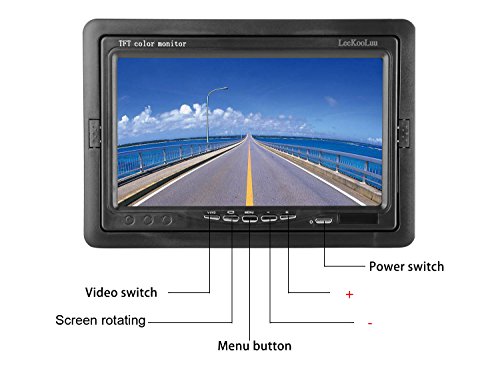

7" Monitor Specification:
The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard
Resolution: 800 TV Lines
Effective Pixels: 960 (H) * 576 (V) Pixels
Screen Size: 7 inch
Display Component: Color TFT LCD
Screen ratio 16:9/4:3 adjustable
Housing Material: ABS
Video Frequency: PAL/NTSC
Power: DC 9V-35V
Rear view Camera Specification:
The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard
Resolution: 800 TV Lines
Effective Pixels: 960 (H) * 576 (V) Pixels/NTSC
Lens Viewing Angle: 150 Degrees
Waterproof IP Rate: IP69K
Power: DC12V-24V
Package Included:
1 x 7 TFT Monitor
1 x Back up Camera
2 x Antennas
2 x Power Cable
1 x Mount Bracket
2 x User Manual
1 x Charger Adapter with Turn on/off
1 x Longer Antennas with 10ft extension Cable
Feature
The wireless module already Built-in the 7'' Display and Camera, You just hook the antennas and power supply to them, They will transport video signals Auto,The system can be set to Rear view in reversing only or Full time constantly view in driving/parking/reversing.Eliminate Blind Spots. display for proper parking and reversing without relying on side mirrors alone.
IP69 Waterproof Camera 150° viewing angle and Easy to hook upto combat bad weather. It's also fog resistant with a night vision ability.We provided professional Instructions in the package. The Reversing guide lines can be optional, default without guide lines untill you cut off the white wire,the guide lines will appear on screen.
The Monitor With two way Video Input V1/V2--The default set V2 for current Wireless, V1 input is optional to wire a additional front/side/rear view camera.7-Inch TFT LCD Widescreen Monitor with Built-in Wireless Receiver-- High resolution image and full color display,The wireless working range over 150ft in open area and 40-45ft on vehicle,we recommend to install it on vehicle under 40ft for get no-interruption signals
You can wire it for only Rear view by powered with reverse lights for camera or full time constantly view by powered with Running lights/car battery for camera.The system Voltage Range From 12-24V DC Power to Accomodate a Wide Variety of Large Vehicle Camper/MPV/Pickup/Van/Truck/SUV/Caravan
We provided a professional instruction and video link in package,Warranty 2 year, life time tech support service : IStrong08@outlook.com
Brand : iStrong
MPN(PartNumber) : iStrong
EAN : 6369864163790
Package Dimensions(LxWxH) : 30x16x11cm ; 1179 g
