Product Description
Extend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 2 km (using 1310 nm Wavelength) With Ease
AN-UMG-MM-AS-1310J Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
Powering it up? Easy, it will come with AC power adapter in set, just plug it!
All These Important Features Are All Supported:
- Compliant with IEEE 1000Base-T and 1000Base-SX
- One 10/100/1000Base-T RJ-45 port autosensing featured
- One 1000Base-SX Multi Mode Dual Fiber port Port with SC type connector - up to 2 km distance
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-SX
- Power supply: 100 to 240VAC 50 to 60Hz
- Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)
- Environment: Relative humidity; 5% to 90%
- Operating temperature: 0 to 70 degree celsius
- CE, FCC, ROHS, LVD certified
- Supports Jumbo Ethernet frames up to 9000 bytes (if needed, configurable by dip switches)
- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
Media converter will extend Your LAN network with any standard Ethernet interface to distances with 2 km or less - you no need to use attenuator also for significantly less distances than 2 km as well.
Setup of these units are really easy as the 3 steps shown in picture gallery, and all default settings will work for all of your cases, but for sophisticated users we had created some more customized settings available via dip switches on unit's back panel.
It's always good to have versatile and adaptive unit to all Your cases!
Questions during installation? Questions during considering a purchase? We are always here to answer You and guide You through!
Feature
AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends in over Multi Mode Fiber to up to 2 km (Transmission Wavelength - 1310 nm)
NO MORE Integration Hassles, simply plug in Ethernet cable to any Ethernet port, whatever speed it is! UPC (Blue) Type Fiber Patch-cords Supported;
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance
PLUG & PLAY - Simply plug in optical port and UTP port, and it will work immediatelly

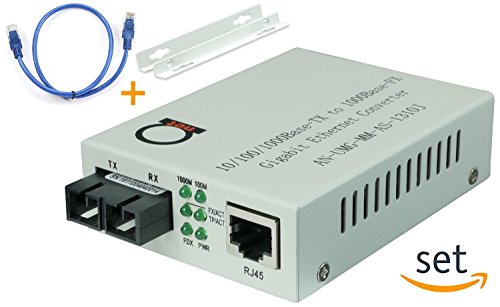

•FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
Brand : ADnet
Item model num : AN-UMG-MM-AS-1310J
MPN(PartNumber) : AN-UMG-MM-AS-1310J
EAN : 0789185566586
Product Dimensions(LxWxH) : 10x8x3cm ; 386 g
Package Dimensions(LxWxH) : 24x13x6cm ; 386 g
