Product Description

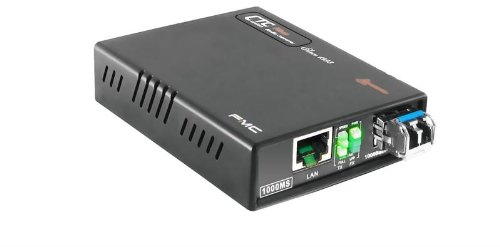

This product is a bundle between the FMC-1000MS converter and an SFP-7010-31 SFP transceiver. AC 90-240V power adapter is included in carton package. FMC-1000MS-SM10 converter is one of the newest Gigabit Ethernet fiber media converter introduced by Datainterfaces.com. The FMC series of media converters are noticed for their simplicity, reliability and extremely affordable cost. FMC-1000MS-SM10 Gigabit converter is a bundle between and FMC-1000MS WebSmart managed converter and an SFP 1.25G 1000Base-LX single-mode 10Km 1310nm optical transceiver. The unit has one RJ-45 copper port with auto-negotiation 10/100/1000 and MDI/MDI-X features for the Gigabit Ethernet copper interface. Even without the SNMP management support, FMC series support IP based web management and Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF) and acts on a Store-and-Forward switching platform.
Feature
Interfaces: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and dual LC 1000Base-LX optical port, 1310nm, up to 10Km reach on 9/125um single-mode fiber
Connectors: RJ-45 copper 10/100/1000 Mbps and dual LC optical connector, UTP port: MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 9 Kbytes, Optical transceiver 1000Base-LX type single-mode 1310nm, max. range 10Km on 9/125um fiber, IP managed, web interface for management, bandwidth settings
Front LEDs: PWR, LLF, Fiber Link, TP Link, Duplex, Speed
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
Temperature: 0 - 50°C (Operating); 0 - 70°C (Storage), Humidity: 20 - 80% non condensing (Operating); 0 - 90% (Storage), Consumption: less than 4W, Dimensions(WxDxH): 85.6mm x 122.6mm x 20mm, Weight: 340g (without AC adapter), Compliance: CE, FCC Class A, MTBF: 65,000 hours
Brand : CTCUnion
Item model num : FMC-1000MS-SM10
MPN(PartNumber) : FMC-1000MS-SM10
EAN : 0811704013292
