Product Description
Introductions:

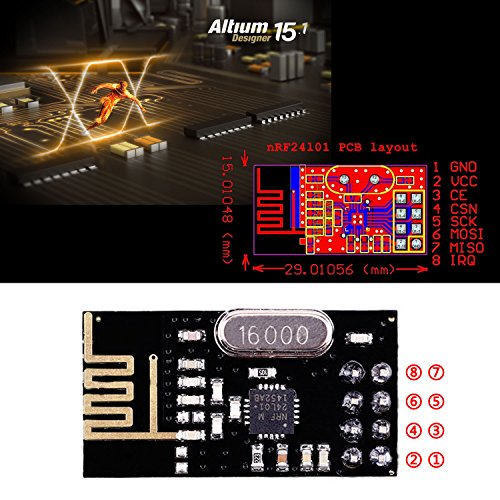

The nRF24L01 is a 2.4GHz ISM band transceiver.
The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and enhanced ShockBurst, protocol engine.
A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection.
Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
The module comes with a voltage regulator adaptor which allows for direct connection to the higher voltage board, like Arduino.
Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC)
Features:
- Ultra small: 15x29mm (including:built-in 2.4GHz antenna),for easy implementation into designs without additional hardware.
- Base Breakout module with voltage regulator and bypass capacitors for stability.
- Low power consumption: Ultra low power consumption as low as 11.3mA transmitting, 13.5mA receiving at 2Mbps, 900nA in power down, and 26uA in standby.
- Communication range: 262 feet (80 meters) in ideal conditions.
- Fast data transfer rate: 2Mbps (software setting range: 1Mbps or 2Mbps)
- Multi frequency points:125 frequency points to meet the needs of multi point communication and frequency hopping communication.
Package Includes:
4 Pcs NRF24L01+ Wireless Module.

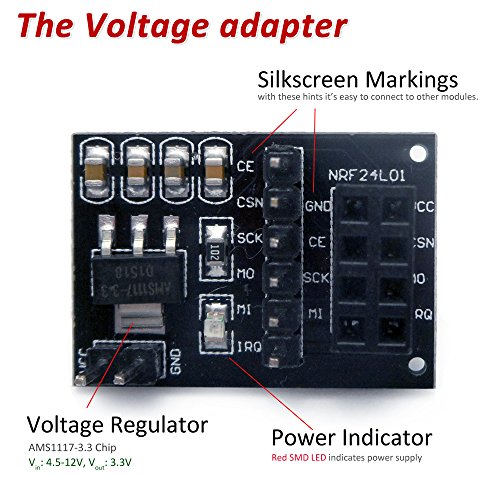

4 Pcs Voltage Regulating Breakout Adapter.
Feature
nRF24L01 is a single chip radio transceiver for the worldwide 2.4 - 2.5 GHz ISM band.
With the on-board 3.3V voltage regulator. The module can accept up to 12V. Compatible with Arduino, Raspberry Pi.
Applications: wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation.
Standard pin layout allows for easy connection to other boards.
You can find several resources available online easily, such as tutorials, data sheets, and notes.
Brand : Lenitech
Item model num : 4328613214
MPN(PartNumber) : 43235-8171
EAN : 4058621125066
Package Dimensions(LxWxH) : 14x11x3cm ; 32 g
