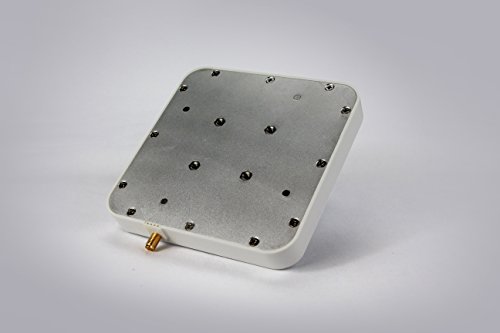

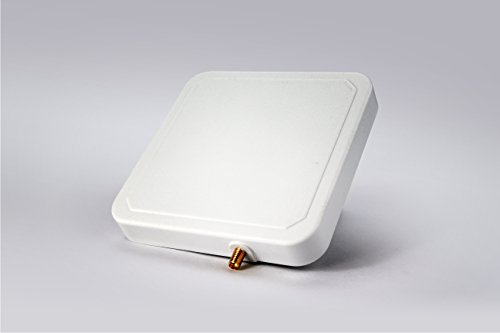

Bestga BSRA-02SR IP65 902-928MHz 6dBic Circular UHF RFID Reader Antenna
Product Features
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties: The compact and artistic antenna is suitable for all kinds of severe environment for its dual waterproof design with Gasket and silicone and strengthening rib of shell.
Main Applications
BSRA-02SR:6dBic Circular UHF RFID ANTENNA IP65
BSRA-02SR is suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and retail item management.
Performance Specifications
Frequency Range: 902MHz-928MHz
Maximum VSWR:≤1.3:1
Gain: > 6dBi
H side HPBW: 90°
E side HPBW: 90°
Polarization: Circular Polarization
Relative humidity: 5%-95%
Input Impedance:50Ω

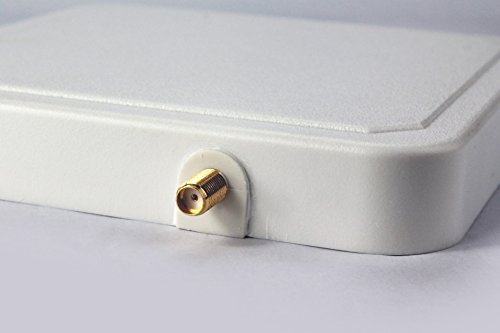

Connector: SMA-50KFD
Physical specifications
Size: 128mm*128 mm*20 mm
Weight: 0.3kg(without bracket)
Material: Engineering Plastic ASA, Aluminums
Color: Ivory-white
Enclosure Rating: IP65
Operational Temperature: -40℃ to + 85℃
Storage Temperature: -40℃ to + 85℃
