Product Description
Description:
AF Standard each port 15.4W 8 Port 10/100M PoE Switch With One Uplink 100M Ethernet Port
Technical parameter list
Product Name: 9-Port AF PoE Switch with 8 100M PoE Ports and 1 Uplink 100M Ethernet Port
Connector Type: 9x 10/100M copper cable RJ45 ports(8 PoE ports+1 Uplink)
Network Media: 10BASE-T: Cat3,4,5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth: 1.6Gbps (non-blocking)
Network Protocols: IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
Power Supply: Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports: Port 1-8 support POE
PoE Port Power: 15.4W for each POE port
PoE Standard: IEEE 802.3af
PoE Feature: All ports support MDI/MDIX
Working Environment: Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%,non-condensing
Certification: 3C,CE Mark ,commercial; CE/LVD EN60950, RoHS
Transmission Distance: 250m when transmission rate is 10Mbps,100m when transmission rate is 100Mbps
Dimension: 23.3*10.5*2.8cm,Net Weight:0.52kg
Warranty: 3 year warranty(1 yeas warranty for power adapter)

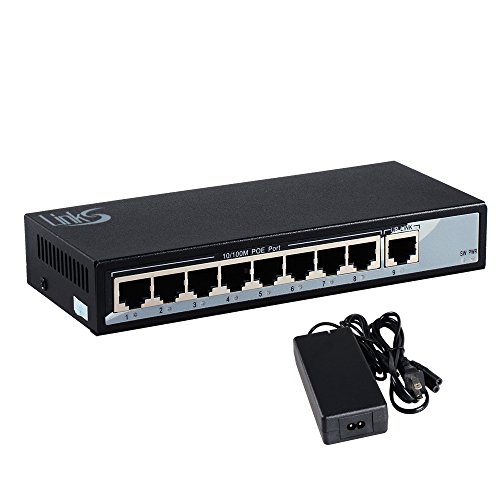

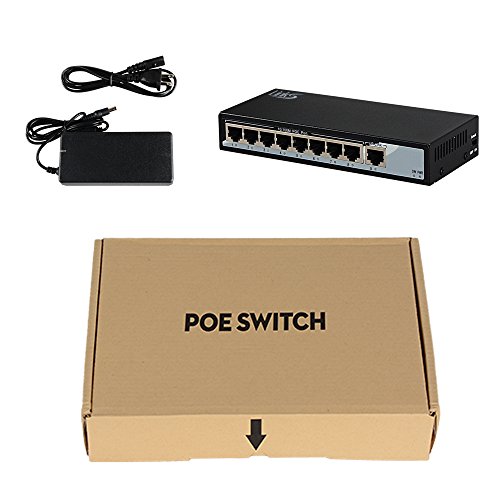

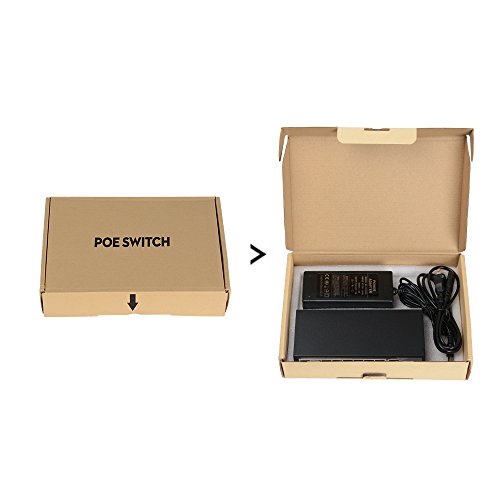

Package Contents:
1 x PoE Switch
1 x AC/DC Adapter
1 x Power Cable
1 x User Guide
Feature
Flexible:Choose to plug in up to nine Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong - high up on walls and ceiling for maximum coverage - or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.
1.Plug and Play:The standards-based PoE Switch LinkS-AF-81 senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
3.Quiet and Compact:Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.
4.Great Value:With data switching and Power over Ethernet integrated into one unit, the PoE Switch LinkS-AF-81 saves space, reduces cables and eliminates the requirement for dedicated electrical outlets - lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.

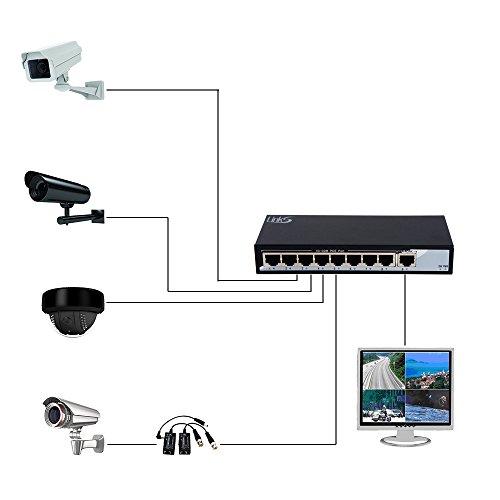

Target Industries:HD monitor transmission and power supply; Wireless AP layout transmission and power supply; Network telephone transmission , intelligent house and home system; Intelligent transportation supervisory system (ITS); High-speed Way supervisory/Tele-Communication System; Security protection system, TV medical treatment; Long-distance Muti-media Schooling, Campus monitoring; Long-distance broadcast television transmission system;
Brand : LinkS
MPN(PartNumber) : 1646
EAN : 0711176895016
Product Dimensions(LxWxH) : 28x16x9cm ; 980 g
Package Dimensions(LxWxH) : 28x16x9cm ; 980 g
