Product Description

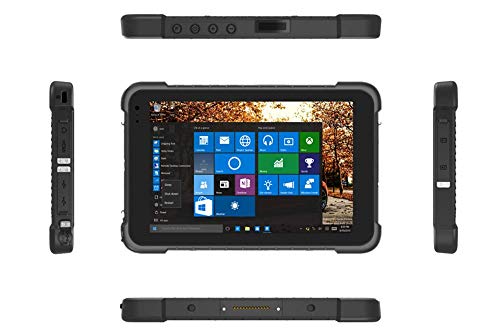

A reliable and durable tablet ideal for mobile outdoor work & field applications in challenging conditions. An essential tool for mobile workforce, consultants, engineers, field geologists who have demand for real time data entry and reporting.

Physical parameters
Dimension: 228*147*16.5mm
Weight: 630g
Display: 8inch LCD screen, 800*1280 IPS screen
Panel: 10 points capacitive, G+G dragontrail glass, Rigidity: 7H above, anti-scratch,TP thickness: 1.1mm, COF, support handwriting
Brightness: 320Nit
Camera: 2million pixels front camera, 5million pixels rear camera
Speaker: 8Ω/0.8W waterproof speaker x 1
Mic: sensitivity:-42db, output resistance:2.2kΩ
Micro SD card slot :support SDHC/SDXCx1, max 128G
USB interface: full size USB x 1, micro USB *1;
DC jack: 5V 3A ∮3.5mm power connector x1
HDMI: 1.4a Type C x1
POGO pin: 12pin POGO Pin x1
Power supply: 3.7V/8500mAh built-in Lithium battery
Endurance: 8hrs(default 50% volumn, default 200 nit brightness, play 1080P HD Video)

Operating System: Windows 10
CPU: Intel X5 Cherry Trail Z8350 quad core processor
Speed: 1.44Ghz-1.92GHz
RAM : 4G
ROM: 64G
G-sensor: Built-in gravity acceleration sensor

Wireless Communication
Bluetooth: BT4.0 (BLE) class1, transmission distance 10m
WIFI: 802.11(a/b/g/n), 2.4G+5.8G dual bands
WWAN(Supports US 3G & 4G network service incl. AT&T, T-Mobile etc.)
LTE FDD B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

Environmental Characteristics
Industrial Protection Grade: IP67 waterproof & dustproof
Drop Grade: 1.2m drop survival to wood floors, in operation status
Working Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +60℃
Humidity: 5%-95% relative humidity; no condensation

Feature

One year's warranty. The package includes: the rugged tablet, US standard power adapter, USB cable, OTG cable, wrist strap.

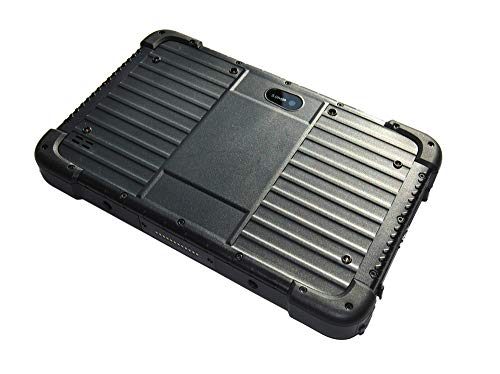

Fully rugged construction, ideal for wild daily use, enterprise field work and warehouse, transportation etc. IP67 sealed rating water-proof and dustproof. MIL-STD810G (temperature, RH, vibration, shock, drop). Adopting Corning Gorilla tempered glass LCD panel for outstanding durability.
Windows 10 Home OS. Intel® X5 Cherytrail Z8350 Quad-Core processor with speed 1.44Ghz-1.92GHz. 4G RAM, 64G ROM. Up to 128GB expandable memory through micro SD. Support OTG mode (Mouse/Keyboard). Bluetooth 4.0; WIFI 802.11 a/b/g/n dual bands. Support 3G & 4G LTE network (AT&T compatible).
Built-in u-blox GPS module, support GNSS. Positioning without network required. 8500mAh integrated nondetachable Lithium battery for 8+ hours full-shift.

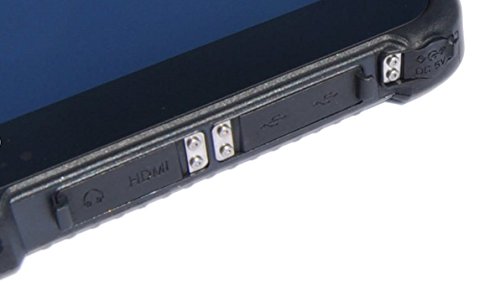

Interface: full size USB, micro USB, micro HDMI, micro SD slot, standard earphone jack & DC input.
Brand : Vanquisher
MPN(PartNumber) : SV-01PRO
EAN : 0713839160240
Product Dimensions(LxWxH) : 23x15x2cm ; 630 g
Package Dimensions(LxWxH) : 36x19x6cm ; 630 g
