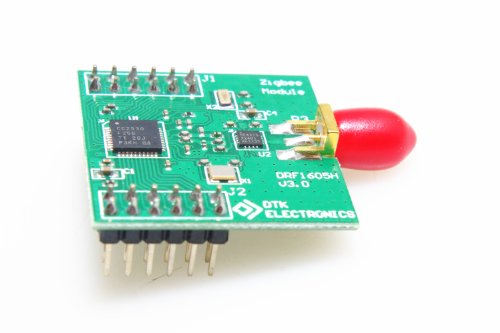

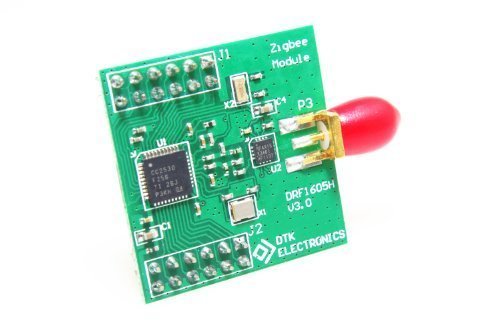

Product Description
The Advantage:
1, NetWork creation automatically: after power on, the Zigbee network can create automatically and the net can repair by itself.
2, Data transmitter simply: the are two different methods to send data, first is clarity transceive, second is point to point.
3, Simply used: customer can use it as UART cable and ignore ZigBee protocol.
4, UART Interface (TX & RX) to Zigbee
5, Built-in RS485 direction control
6, High power module,the distance can reach 1600M
7, Customer can use it with ZigBee USB mother board
8, As the pin distance is 2.54mm or 2.54*n, thus it can connector to versatile board
9, Any MCU can connect to this module, just need MCU has UART ( TX & RX @ 3.3V ).
Electronic Parameters:
Input voltage Standard : DC3.3V
Range: DC 2.6-3.6V
Temperature range: -40C~85C
Serial port rate: 38400bps(Default), 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Radio frequency: 2.4G(2460MHz), Can changed(2405MHz - 2480MHz,Step:5MHz) Wireless protocol: Zigbee2007 Distance Visual distance: 1600 Meters
Working current Sending: 110mA(Max) 50mA(Average) Receiving:35mA(Max) Standby: 40MA(Max)
Users can customize the low-power module (standard module does not have this feature)
Receiver sensitivity: -110 dBm
Chip: CC2530F256,256KFLASH
Configurable Point: Can be configured as Coordinator,Router
Default:Router,PAN ID=0x199B,Radio Channel=22(2460MHz)
Interface UART 3.3V (TX & RX)
Built-in RS485 direction control, RS485 chip can directly drive
RS232 chip can directly drive
Direct USB to RS232 chip driver
Package:
DRF1605H x1

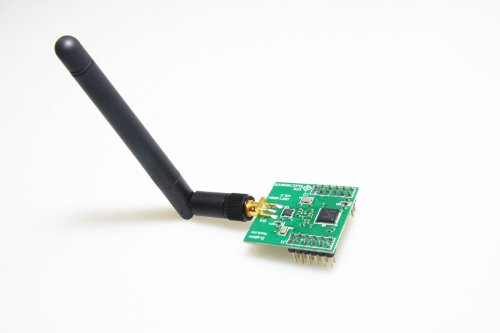

Antenna x1
Feature
NetWork creation automatically: after power on, the Zigbee network can create automatically and the net can repair by itself
Data transmitter simply: the are two different methods to send data, first is clarity transceive, second is point to point
Simply used: customer can use it as UART cable and ignore ZigBee protocol
UART Interface (TX & RX) to Zigbee
Built-in RS485 direction control
Item model num : 6465637
MPN(PartNumber) : 6465637
EAN : 0868138265575
Product Dimensions(LxWxH) : 16x9x2cm ; 9 g
Package Dimensions(LxWxH) : 16x9x2cm ; 9 g
