Product Description

Note:
1. Install the driver from CD first before you insert the WiFi adapter
2. Restart your computer after driver installation
3. If your computer is desktop, we suggest that you'd better insert the WiFi adapter into the back USB port of you PC, that may guarantee the power supply
4. If you can't read the CD software, you can download the driver software here: https://goo.gl/Hde7gF

About dual band usage:

This is a dual band WiFi dongle, adopts the newest WiFi standard 802.11ac, perfect match with any dual band WiFi routers to offer you two WiFi mode options of 2.4GHz or 5.8GHz. But there are something you should know before you make a complaint about speed.

1. You must have a dual band WiFi router with 5G band if you want to have a 5.8G signal.

2. The max. speed up to 433Mbps just works when you connect to 5G band, otherwise, it will just run at the max. speed of 150Mbps with 2.4G.

3. This WiFi adapter will not boost the speed of original router, it just transmit the wifi signal.

4. If your WiFi adapter is closed to the router, and you want to have fast speed in watching video and playing online games, we suggest that you should connect to the 5G band. If your WiFi adapter is far away from the router, and you just want to surf the website, you'd better connect to 2.4G band for better and stable signal.

Chipset: Realtek 8811AU

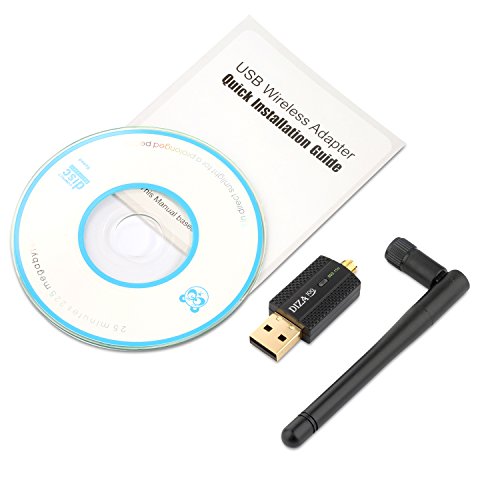

Packing List:
1 x USB Wireless WIFI adapter
1 x 2dBi Antenna
1 x CD
1 x User manual

Feature

【Higher Speed】 Ultra-fast AC 600Mbps wireless adapter, max. WiFi speed up to 5.8G/433Mbps or 2.4G/150Mbps which has a good performance for movies, HD video streaming, online gaming and video chatting.

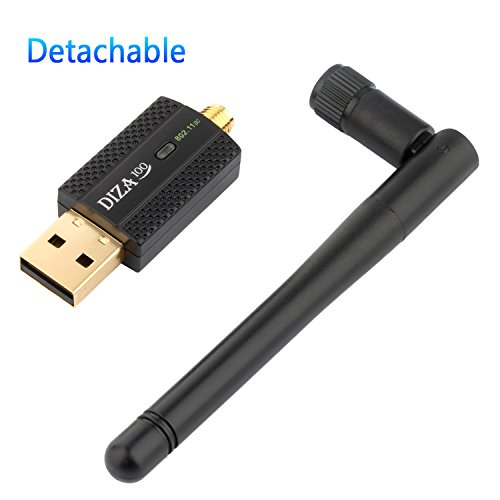

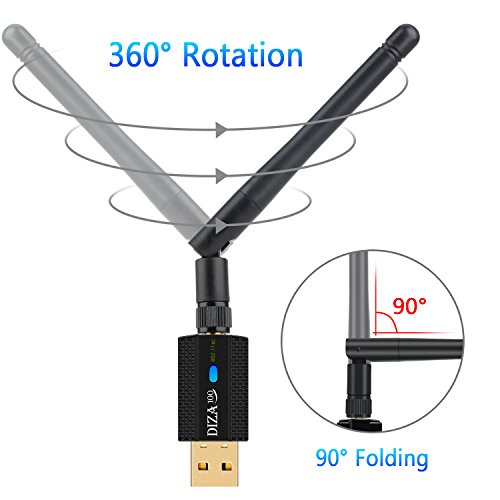

【Stable WiFi Signal】 External high gain antenna helps to catch the signal in a long range and offer you a better stable WiFi signal experience.

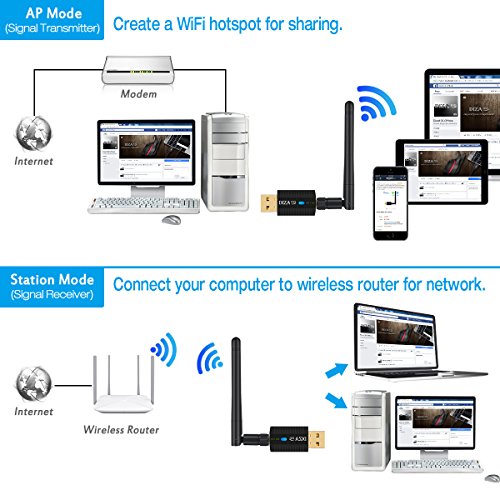

【Easy to Set UP】 You can install the driver from CD disk, restart your computer, then plug the adapter into your pc, it will receive network signal from your wireless router. Besides, you can switch to the AP mode to create a hotspot for WiFi sharing.
【High Compatibility】 Suitable for desktop and laptop computer, compatible with Windows XP/VISTA/7/8/10, Mac OS X 10.4-10.11 and 10.12, and Linux operating system.
【Warranty & Service】 One year warranty for this product, we offer the fast response and best after-sales service for your 100% satisfaction.
Brand : DIZA100
Item model num : DZ-1607
MPN(PartNumber) : DZ-1607
EAN : 0615855642772
Product Dimensions(LxWxH) : 15x2x2cm ; 41 g
Package Dimensions(LxWxH) : 11x11x3cm ; 41 g
