Product Description

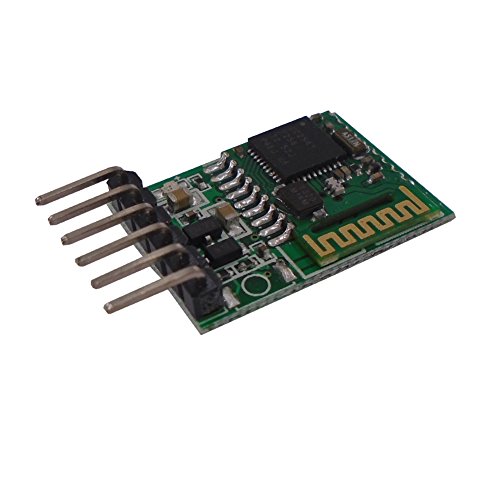

If you need to use iphone or ipad to control your arduino project, SH-M08 4.0 ble slave module with 6pin baseboard may be a good choice.
Fully compatible with ios7.0 or later and iPhone 4s / 5 / 5s 6 / 6s or later
Also compatible with Android 4.3 or later.

Please note:
if the version of the Android os is less than 4.3. it is not compatible.
This module only supports bluetooth 4.0 ble mode. Not compatible with any classic Bluetooth 2.0 device

About UUID:
Service uuid : FFE0
Write,Read, Notify char uuid: FFE1

Features:
1,Core module uses SH-M08, leads from the module interface includes VCC, GND, TXD, RXD
2, led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port Backplane
3, 3.3V LDO input voltage 3.6 ~6V, the input voltage to prohibit more than 7V!
4, the interface level 3.3V, can be directly connected the various SCM (51, AVR, PIC, ARM, MSP430, etc.)
5, open to the effective distance of 10 meters, over 10 meters is also possible, but not of this the quality of the connection of the distance do to ensure


How to Test it:
1, Send "AT" will return " OK" via serial port.
2, Down LightBlue from appstore,and you will find "SH-HC-08" in list.
For Android Phone, please down "Ble scanner" app.

What is the difference between SH-M08 and SH-HC-08?
SH-M08 is a small version of SH-HC-08, SH-M08 and SH-HC-08 have exactly the same AT command, the same UUID.So, if you have used SH-HC-08, you can easily learn to use SH-M08.

Feature

BLUETOOH 4.0 BLE : with this module ,you can add Bluetooth features to your arduino and support iOS devices(such as iphone or ipad)
Only Slave mode. Compatible with iPhone 4s/5/5s 6/6s and android phones 4.3 or later.We recommend test app is LightBlue for iOS7.0 or later,"Ble Scanner" app for Android phone.
Very small size: Maybe SH-M08 is the smallest Bluetooth 4.0 module.You can not only use in your DIY project, and even can be applied to a variety of Bluetooth smart products.
TI CC2541 CHIP: Main chip is cc2541F256 manufactured by TI. if you are MCU pro, you can program it by cc-debugger.
1 year warranty:Default rate : 9600, Working voltage 3.3V to 6V ,and You can modify the baud rate and the Bluetooth name via the at command
Brand : DSD TECH
Item model num : SH-M08
MPN(PartNumber) : SH-M08-01
EAN : 0603717227625
Product Dimensions(LxWxH) : 3x2x1cm ; 18 g
Package Dimensions(LxWxH) : 12x9x2cm ; 18 g
