Product Description

If you need to use iphone or ipad to control your arduino Board or DIY Project, SH-HC-08 4.0 BLE Slave module may be a good choice.
Fully compatible with iOS 7.0 or later and iPhone 4s or later
Also compatible with Android 4.3 or later.

Please note:
if the version of the Android os is less than 4.3. it is not compatible.
This module only supports bluetooth 4.0 ble mode. Not compatible with any classic Bluetooth 2.0 device

About UUID:
Service uuid : FFE0
Write,Read, Notify char uuid: FFE1


Features:

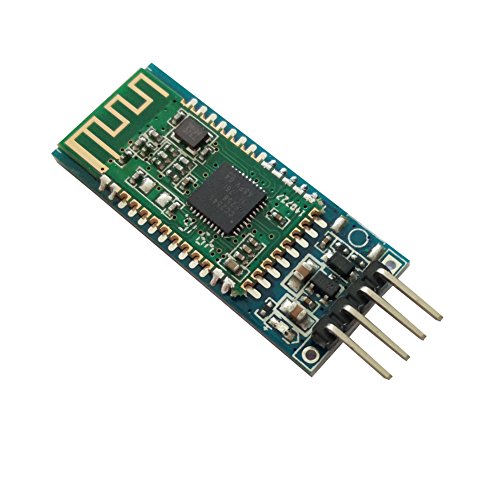

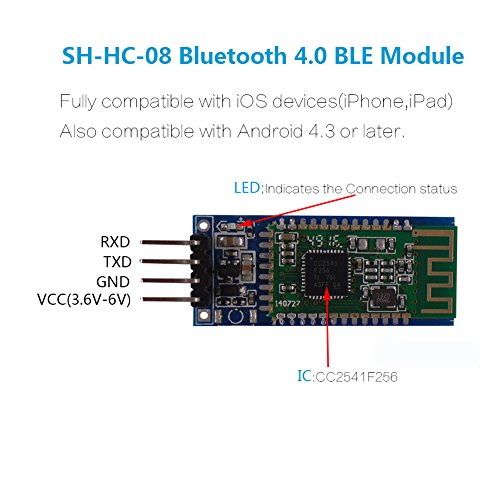

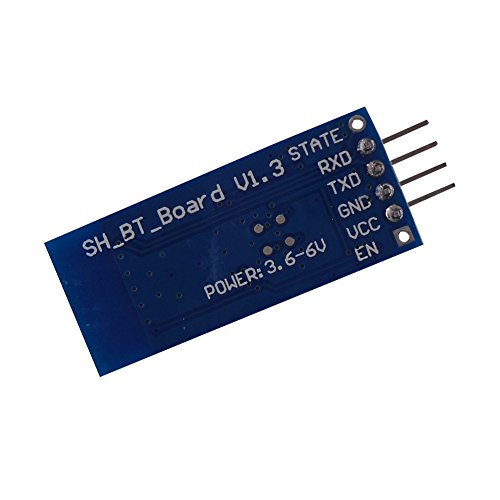

1,Core module uses SH-HC-08, leads from the module interface includes VCC, GND, TXD, RXD.
2, led indicate Bluetooth connection status
3, Input voltage 3.6 ~6V, the input voltage to prohibit more than 7V!
4, Logic Level for TX,RX is 3.3V, can be directly connected the various SCM (51, AVR, PIC, ARM, MSP430, etc.)
5, open to the effective distance of 10 meters, over 10 meters is also possible, but not of this the quality of the connection of the distance do to ensure
6, compact (3.57cm * 1.52cm), the factory chip production to ensure the placement quality. dust and beautiful, and anti-static

How to Test it:
1, Send "AT" will return " OK" via serial port.
2, Different from the Bluetooth 2.0 classic module(such as HC-05, HC-06), this module is Bluetooth 4.0 LE module, you need to use with the app.

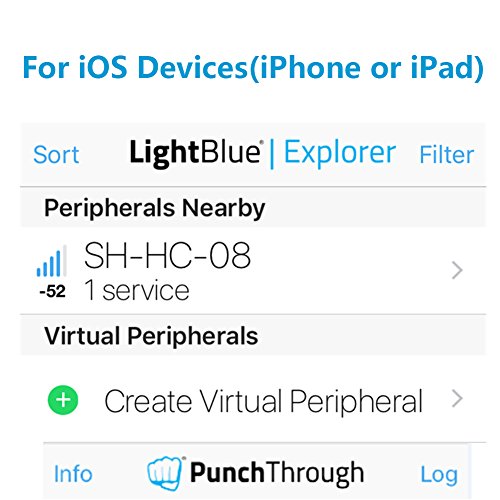

For iOS Devices, Please Download "LightBlue" from appstore,and you will find "SH-HC-08" in list.
For Android Phone, please search "DSD TECH Bluetooth" in google play .

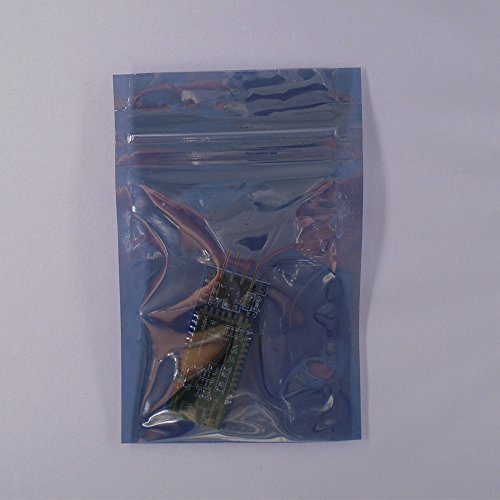

Packing list
1 PCS SH-HC-08 Bluetooth module
1 PCS user manual

Feature

With this Bluetooth 4.0 LE Module, you can add Bluetooth features to your arduino and support iOS devices(such as iphone or ipad)
Only Support Slave mode. Compatible with iOS Device(iphone4s or later) and android phones 4.3 or later.We recommend test app is LightBlue for iOS7.0 or later,"DSD TECH Bluetooth" app for Android phone.
TI CC2541 CHIP: Main chip is cc2541F256 manufactured by TI. High quality, high stability.The transmission distance is more than 10 meters.
Default rate : 9600, Working voltage 3.3V to 6V. and You can modify the baud rate and the Bluetooth name via the at command
DSD TECH brand: DSD TECH provide 12-month Warranty and Lifetime Technical Support.If you meet any question, please contact us, we will fix your issue within 24 hours.
Brand : DSD TECH
Item model num : SH-HC-08
MPN(PartNumber) : SH-HC-08-002
EAN : 0763383136482
Product Dimensions(LxWxH) : 8x6x1cm ; 18 g
Package Dimensions(LxWxH) : 13x7x1cm ; 18 g
