Specifications:

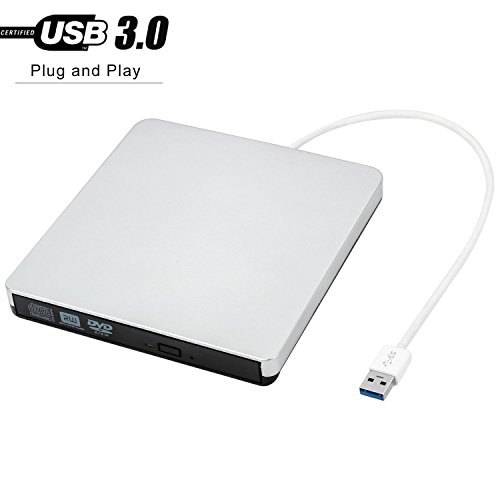

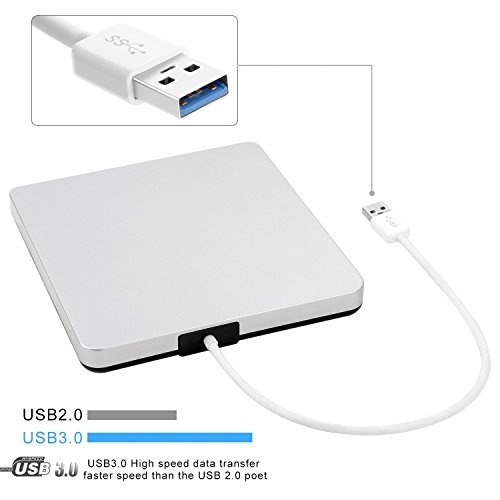

Interface standard: USB3.0
Installation: external
Disk Specifications: 12CM, 8cm
Error correction function: Yes

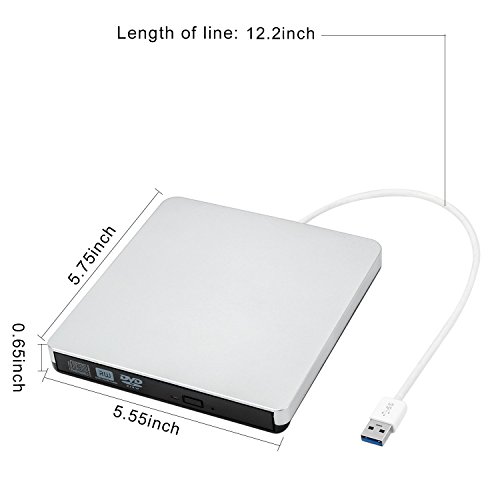

Specifications: 138 * 144 * 18mm
Packing size: 212 * 165 * 25
Model Number: PPC001S
Output Voltage: 3-5V

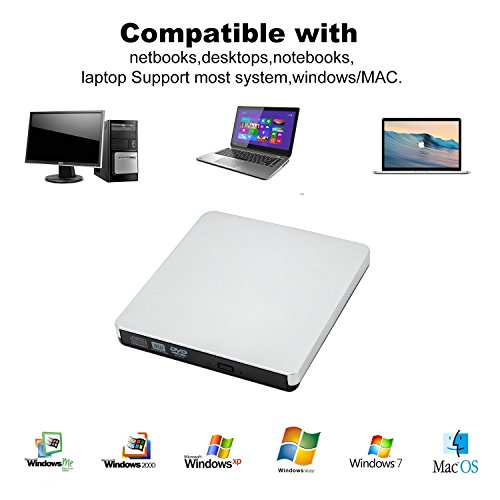

Support System: Windows 2000/2003/XP, Windows 7/8/10,
Vista 7/8 and all versions of MAC OS systems.
Support Computers: Laptop, desktop, notebook
Driver: Plug and play, no extra driver needed.
Read Speed: CD:54X
DVD(Double/Single Layer): 8X
Write Speed: CD-R:24X
CD-RW:16X(US-RW)
DVD+/-R: 8X
DVD+R Double Layer: Max.6X
DVD-RAM: 5V
DVD+RW: 8V
DVD-RW: 6X
Operating Instruction:
1.Connect the drive to computer.
Please directly connect it to the USB port of computer. If you connect it to a USB hub or
USB extension cord,it maybe cannot run normally and smoothly when using. For desktop,
please connect it to the USB port of the motherboard. If you connect it to the frontal USB
interface of the mother, it maybe cannot run normally on account of insufficient power supply.
2.After connecting, wait a while, it will install driver by itself, then an icon will be displayed in "My computer"as right picture (Apple computer does not display the icon before placing a disc into tray)

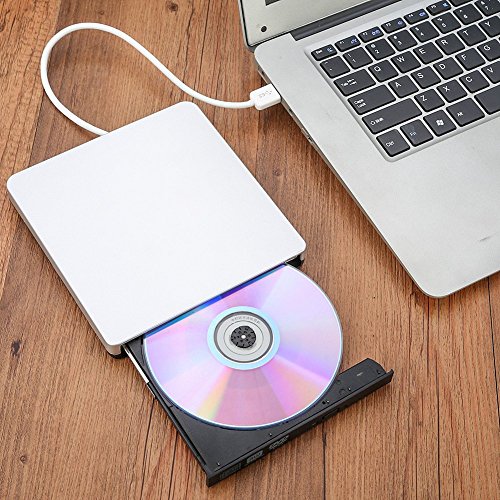

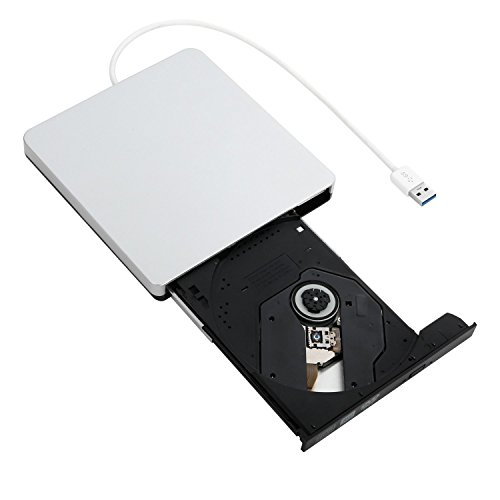

3.Eject Disc Tray: Move cursor to this icon, click right mouse button, choose ejected in the pull-down window, then the disc tray will be ejected out, then correctly place disc into disc tray with label facing up and ensure disc is tighten by center spindle motor. You can also press the eject button to eject the disc tray. (Apple computers does not display icon, you can directlu press the eject button to eject disc tray.)
