Product Description

SMSL DP3 is a Hifi Audio Wifi Player DAC with Bluetooth USB SD Input and Balanced and Unbalanced Headphone Jack.

Features:

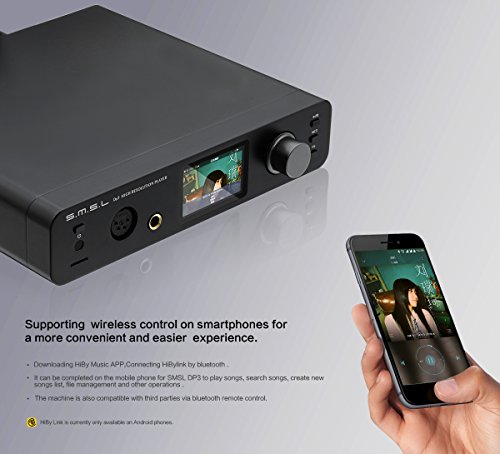

1.Supporting wireless control on smartphones for a more convenient and easier experience.

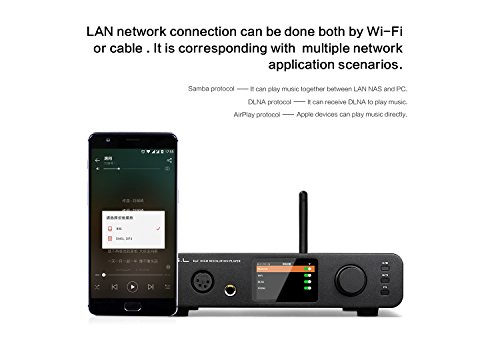

2.LAN network connection can be done both by Wi-Fi or cable.It is corresponding with multiple network application scenarios.
3.High specification playback performance, supporting multiple audio formats.

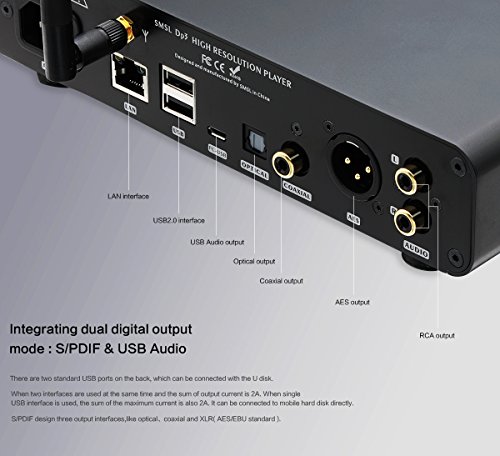

4.Integrating dual digital output mode:S/PDIF & USB Audio

Specifications:
Input mode:USB/USB Audio/SD/Bluetooth/DLNA/SAMBA(NAS)
Output mode:Line/Headphone/Optical/Coaxial/AES/Bluetooth/USB
THD+N:Line output 0.0008% Unbalanced output 0.0008% Balanced output 0.004%
Dynamic range:line output 121dB
SNR:line output 112dB Unbalanced output 112dB Balanced output 110dB
Headphone output power:Unbalanced output 58mW(32Ω) 46mW(64Ω) 26mW(150Ω) Balanced output 113mW(32Ω) 110mW(64Ω) 78mW(150Ω) 49mW(300Ω)
Line output level:2Vrms
USB Audio:DSD Top support DSD256 PCM Top support PCM384khz
USB Audio system compatibility:windows7/8/8.1/10;Mac OS X; linux
DSD D2P:Top support DSD 128
DSD DOP:Top support DSD 256
DSD Native:Top support DSD 256
Digital output DOP output:Top support for DSD64
PCM:Top support 384KHz
File system:Support FAT/FAT32/NTFS
Micro SD Capacity of card:Top support 256GB
USB drive/Hard disk:Top support 4TB
USB Maximum output current:2A(The sum of two USB output currents)
USB DAC output:Support
Bluetooth version:4.0 Edition
APT-X:Support
Bluetooth input:Support
Bluetooth output:Support
HiBy Link:Support
WiFi function:Support
WiFi specifications:Support 2.4G/5G
Speed:100M
File browsing:Support
Software upgrade:Support
Power consumption:3W
Standby:0.5W

Notes: 1. When using airplay, the buffer of airplay is quite small, so it is often influenced by the wifi environment. Therefore, a good wifi environment is necessary.

Feature

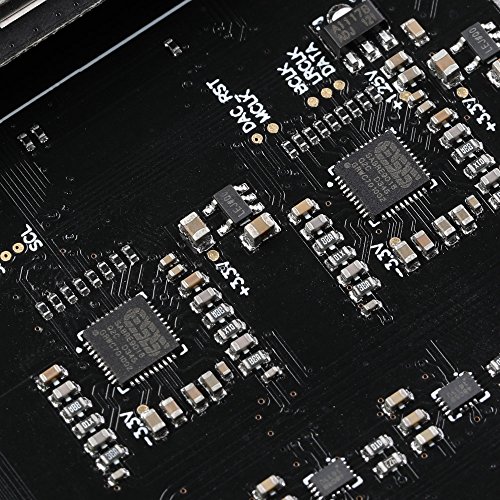

A lossless player with balanced headphone amplifier output.DSD Using dual SABRE9018Q2C which from USA ESS technology,feature high SNR,very low THD+N and build-in large current headphone amplifier.
Support bluetooth 4.0 input and APT-X lossness.Support bluetooth transmission,can use to connect bluetooth headset.Support Hiby APP to control this product(Hiby Link).
Support"ISO、APE、FLAC、WAV、ALAC、WMA、AIFF、MP3、DFF、DSD" and many other music files.The sampling rate of these file are up to 32bit / 384K（PCM）and DSD256.
The Micro-USB port can connect to computer make DP3 a USB DAC.DP3 can act as a USB host to connect a external USB DAC and also support DSD streaming.
Support network playback（DLNA＆AirPlay）via Ethernet and WiFi (2.4G and 5G).Built-in headphone amplifier,both unbalanced and balanced.All path digital output,coaxial,optical,AES/EBU,even USB.
Brand : SMSL
MPN(PartNumber) : DP3
EAN : 6970141853817
Package Dimensions(LxWxH) : 35x29x9cm ; 1928 g
