Product Description
Feature

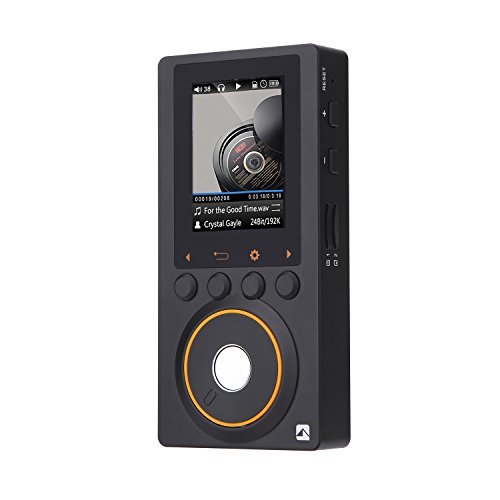

The DP10 is a true audio performer that will entertain your ears and allow you to hear music as the artist intended. Our team of engineers have not held back and have impressively brought you a player that is not only compact and robust in design but also delivers audio in a precise manner that you deserve.
AKM AK4490 Premium DAC. The AK4490EQ chipset is a new generation of premium 32-bit DAC. Incorporating 2-channels of AKM’s VELVET SOUND™ that has been widely adopted by well-established high-end audio companies. This technology realises fine sound details with its low-distortion characteristics in addition to 32-bit digital filter processing.
SPECIFICATIONS
- Model Number: HDA-DP10
- Display: 2-inch (240 × 320) 262K color screen
- Music Playback Application: ATC high precision portable digital music player
- CPU Processor: JZ4760B mobile application processor
- DAC: AKM AK4490
- Memory Expansion: Micro SDXC slot (up to 128GB x 2)
- Headphone amplifier: MUSES 8920 + LMH6643
- Headphone Output Power: 240mW@32 ohm/THD+N<0.0025%
- Maximum Headphone Output: 500mW (32 ohm loading)
- Line out Output Voltage: 1.7Vrms
- Built-in Battery: 2400mAh
- Battery Life: 9 hours (Dependent on the environment and use)
- Sound Effects: DAC filter setting, gain control
- Supported Audio Formats: DSD64, WAV, ALAC, AIFF, FLAC, APE
- Dimensions: Width: 53mm x Height: 107.50mm x Depth: 16.50mm
- Weight: 141g
- Accessories: USB cable x 1, optical cable x 1, 3.5mm recording cable x 1, user manual x 1
Feature
The DP-10 utilises a new audio platform, JZ4760B (audio processor) & AK4490 (DAC). This platform supports DSD, WAV, ALAC, FLAC, AIFF and APE Hi-Res music formats
Accompanied by a low distortion, low background noise operational amplifier, OPA1612, for a low pass filter in the circuit.
The AK4490EQ chipset fitted is a new generation of premium 32-bit DAC. Incorporating 2-channels of AKM's VELVET SOUND this chip has been widely adopted by well-established high-end audio companies. This technology realises fine sound details with its low-distortion characteristics in addition to 32-bit digital filter processing.

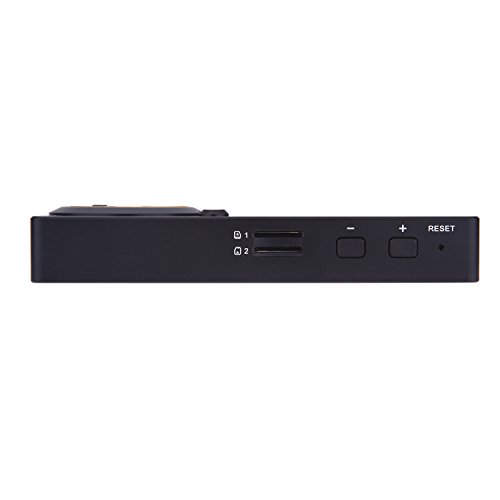

Thanks to the twin Micro SDXC card slots, the ATC HDA-DP10 has a storage or up to 256GB (with 2 x 128GB cards). This is enough for a serious music library - even at High Resolution levels.
Recharge the HDA-DP10 in around four hours and you'll have up to around nine hours playback.
Brand : Atc
Item model num : HDA-DP10
MPN(PartNumber) : HDA-DP10
EAN : 4892606013319
Product Dimensions(LxWxH) : 6x2x11cm ; 141 g
Package Dimensions(LxWxH) : 16x9x6cm ; 141 g
