Product Description
Application:
Support five channel video input mode, TV compatible, video, as well as professional VGA, also customized monitoring mode,
can be done as a liquid crystal display, PC display, while supporting the HD input.
Application in the optical industry, medical industry, security industry, video industry, military industry, electronics manufacturing, industrial manufacturing, etc.. (680*480/60 Hz, 800*480/60 Hz, 1024*600/60Hz)
Specification:
Power consumption: DC12V-800Ma(max)
Power adapter: DC12V-1A

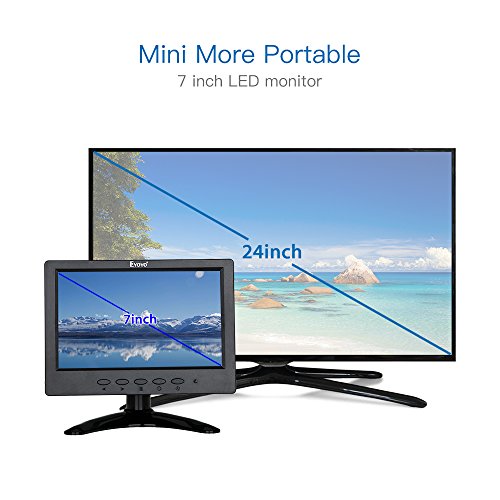

Panel size/Aspect ratio: 7inch 16:9

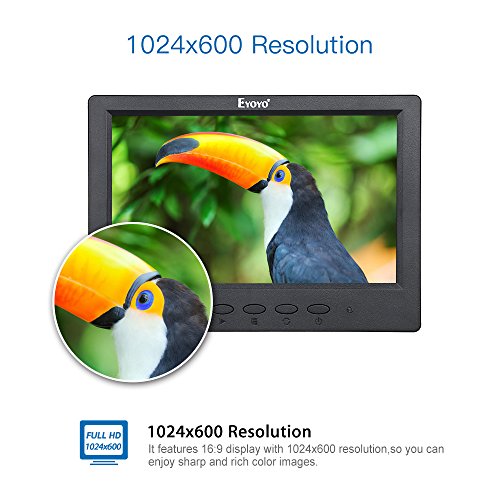

Resolution: 1024(H)*600V)
Viewing angle: 70°(H)*70°(V)
Brightness: 250cd/㎡
Contrast: 600:1

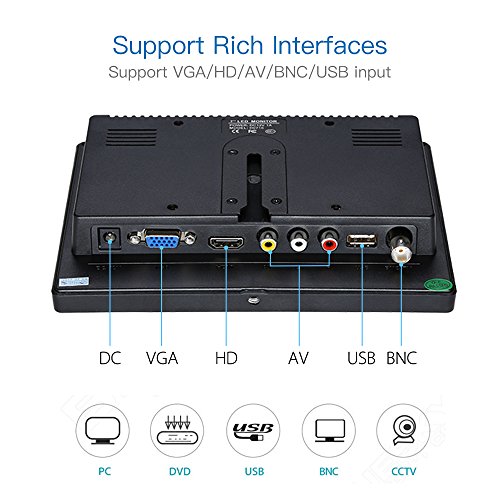

Interface:HDMI/VGA/BNC/AV/USB
Screen refresh rate:60-75Hz
Video input:1Vp-p cvbs
VGA input: 640*480/Hz 800*480/Hz 1024*600/Hz
Operating temperature: 0~60℃

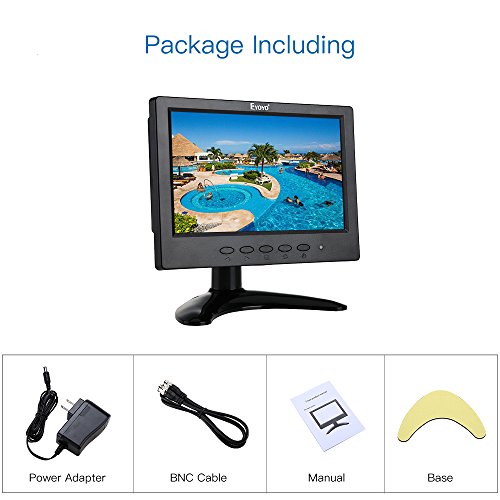

Package Included:

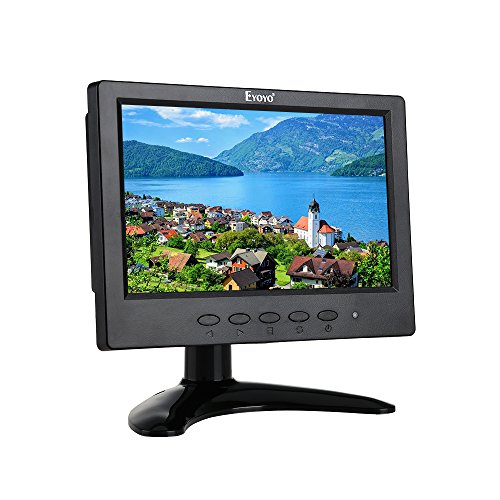

1x7inch TFT-LED Monitor
1xBNC Cable
1x Stand
1xBase
1xManual
Feature
Simple and stylish design, support for multiple bracket mode, 7-inch high-brightness LCD display with a resolution of 1024*600.
Professional security BNC signal input; connected to monitoring equipment to reduce mutual interference between the various signals to achieve optimal results.

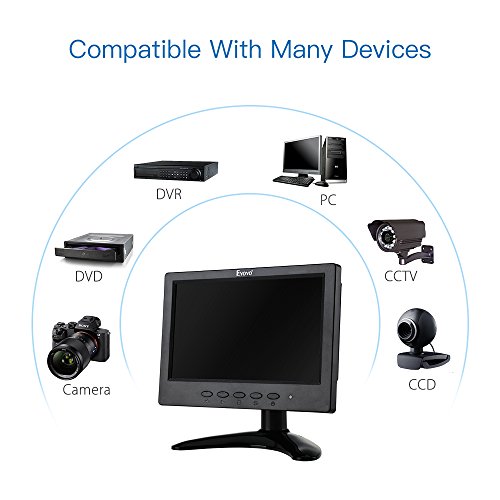

Multi-interface input support USB,VGA,AV,BNC,HDMI(VGA input, the computer model, 800*480, 800*600, 1024*600).

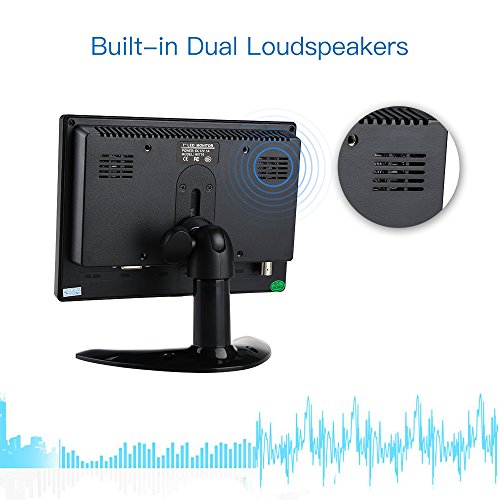

Build-in dual loudespeaker,support multi-language selection.
Support USB Iutput function,Photo/Music/Music/TEXT readable.
Brand : Eyoyo
MPN(PartNumber) : 43235-72430
EAN : 0889251357442
Package Dimensions(LxWxH) : 30x22x9cm ; 771 g
