Product Description

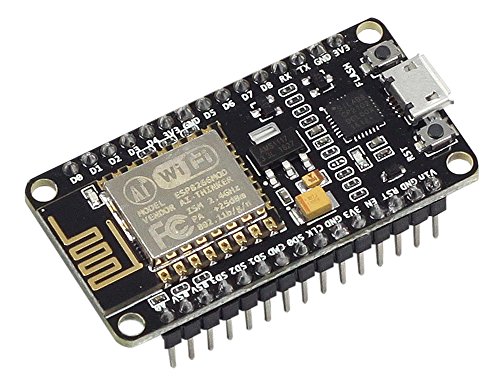

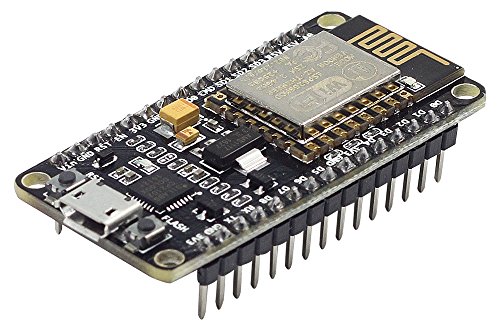

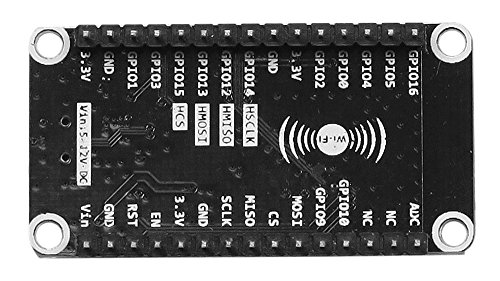

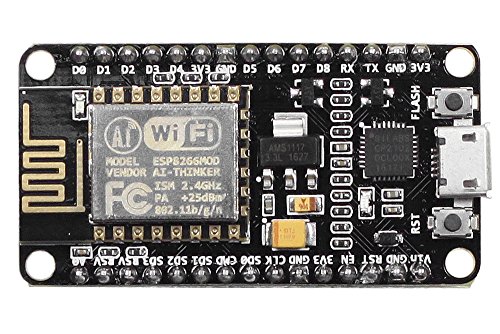

This UCTRONICS LUA Wi-Fi Internet ESP8266 ESP-12E Development Board is take on an ' Highest Level of Integration' ESP8266 Wi-Fi development board with built in USB. Its heart is an ESP8266 Wi-Fi microcontroller clocked at 2.4GHz and at 3.3V logic.
Built-in a high-quality Labs CP2102 Single-Chip USB to UART Bridge with Micro-USB connector that baud rates up to 921600, the CP2102 has better driver support than the CH340.
Include interpreters for processing commands through peripheral interfaces (e.g., SPI, UART) for languages such as Lua, JavaScript, and Python.

Features:
802.11 b/g/n protocol
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLL, regulators, and power management units
+19.5dBm output power in 802.11b mode
Integrated temperature sensor
Supports antenna diversity
Power down leakage current of < 10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 2.0, SPI, UART
STBC, 1x1 MIMO, 2x1 MIMO
A-MPDU & A-MSDU aggregation & 0.4 s guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)

Applications:
Smart power plugs
Home automation
Mesh network
Industrial wireless control
Baby monitors
IP Cameras
Sensor networks
Wearable electronics
Wi-Fi location-aware devices
Security ID tags
Wi-Fi position system beacons

Package Including:
1pcs UCTRONICS LUA Wi-Fi Internet ESP8266 ESP-12E Development Board (The OLED and cable shown in the picture is NO INCLUDED)
FTP support for datasheets

Feature

This UCTRONICS LUA Wi-Fi Internet ESP8266 ESP-12E Development Board is take on an ' Highest Level of Integration' ESP8266 Wi-Fi development board with built in USB. The OLED and cable shown in the picture is NO INCLUDED
At the Internet ESP8266 ESP-12E Development Board's heart is an ESP8266 Wi-Fi microcontroller clocked at 2.4GHz and at 3.3V logic
Built-in a high-quality Labs CP2102 Single-Chip USB to UART Bridge with Micro-USB connector that baud rates up to 921600, reset button, user-programmable button, user-controllable led
Include interpreters for processing commands through peripheral interfaces (e.g., SPI, UART) for languages such as Lua, JavaScript, and Python
This LUA Wi-Fi Internet ESP8266 ESP-12E Development Board can be used in Smart power plugs, Home automation, Mesh network, Industrial wireless control, Wearable electronics, Wi-Fi location-aware devices
Brand : UCTRONICS
Item model num : U6024
MPN(PartNumber) : U6024
Product Dimensions(LxWxH) : 5x3x2cm ; 14 g
Package Dimensions(LxWxH) : 6x5x4cm ; 14 g
